Supply Vent, 16 In

SKU
Brand Dayton
Categories
Description Supply Fan, Mounting Location Roof, Assembly Fully Assembled, Blade Diameter 16 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 2,353 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 1 in wc, Motor Enclosure Open Dripproof, Motor Horsepower 1/2 hp, Nameplate Voltage 115V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4, Supply Airflow @ 0.000 in SP 2,353 cfm, Base Diameter Not Applicable
graingerSKU: 4YC56, mscSKU: , zoro_no: G0789792, mongo_id: 65bbe94f22d7a989a994a590

Web Price

$1,543.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV83

Adj. 6 3/8H Roof Curb Stock No. 4c454

Airflow @ 0.000 in SP 2,353 cfm

Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 26 in Square

Base Height 1 3/4 in

Base Length 26 in

Base Shape Square

Base Top to Shroud 6 1/4 in

Base Width 26 in

Blade Design Swept Steeply Pitched

Blade Diameter 16 in

Blade Material Aluminum

Brake Horsepower 3/10 hp

CFM @ 0.000-In. SP 2353

CFM @ 0.125-In. SP 2195

CFM @ 0.250-In. SP 2008

CFM @ 0.375-In. SP 1819

CFM @ 0.500-In. SP 1597

CFM @ 0.625-In. SP 1330

CFM @ 0.750-In. SP 1121

CFM @ 0.875-In. SP 903

Compatible Curb Manufacturer Part Number 2RB77, 2ZV83, 3C437, 4C454, 4HX40, 4HX48

Compatible Speed Control 48C173

Country of Origin (subject to change) United States

Current 6.0/3.0 A

Cutout Length 21.5 in

Cutout Size 21.5 in L x 21.5 in W

Damper Size 19 x 19 in

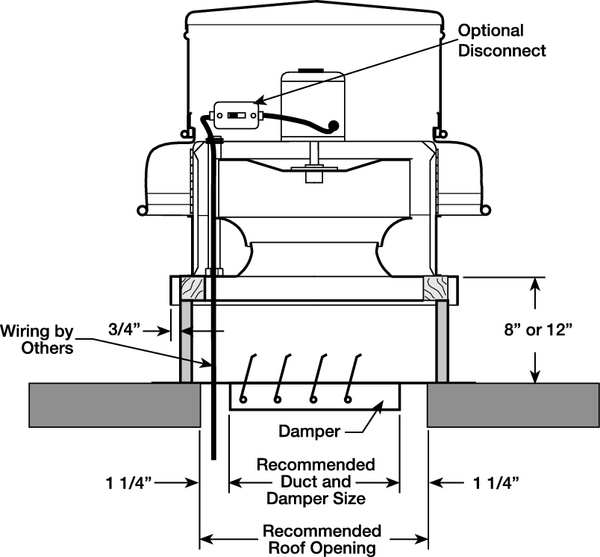

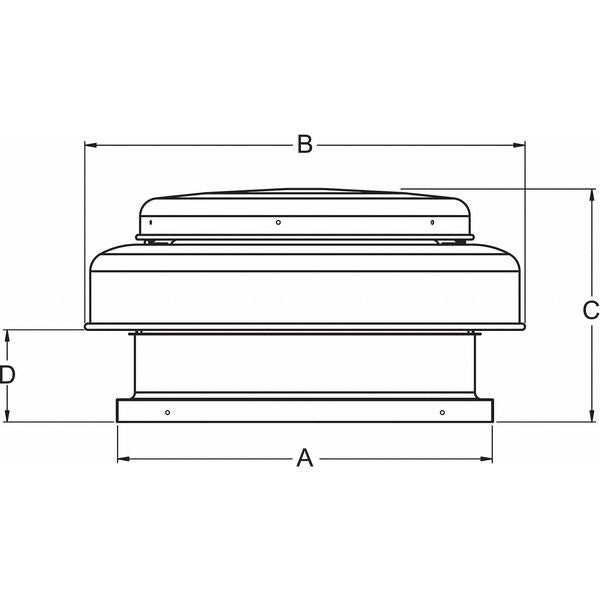

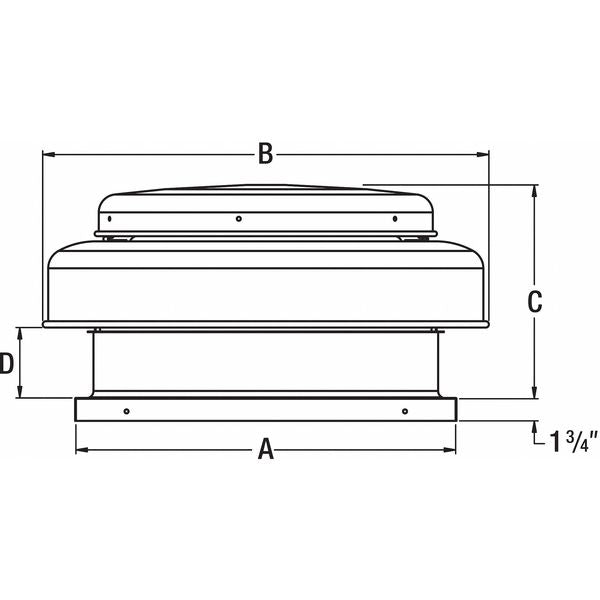

Dimension A 26 in

Dimension B 35 1/4 in

Dimension C 17 1/4 in

Dimension D 6 1/4 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,353 cfm

Exhaust Airflow @ 0.125 in SP 2,195 cfm

Exhaust Airflow @ 0.250 in SP 2,008 cfm

Exhaust Airflow @ 0.375 in SP 1,819 cfm

Exhaust Airflow @ 0.500 in SP 1,597 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 35.3 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 35.3 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.3 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 3.9

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard-Efficiency Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 35 1/4 in

Overall Diameter 35.3 in

Overall Height 19 in

Overall Length 35 1/4 in

Overall Width 35 1/4 in

Package Quantity 1

Phase 1

Propeller Dia. 16 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

Recommended 12 In. Fixed Curb Item No. 2RB77

Recommended 8 In. Fixed Curb Item No. 4HX40

Recommended Damper Size 19 in x 19 in

Recommended Damper Stock No. 4HX66

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 19.5

Sones @ 0.250-In. SP @ 5 Ft. 19.6

Sound Level 19.1 sones @ 1.000 in SP and 5 ft, 19.5 sones @ 0.125 in SP and 5 ft, 19.5 sones @ 0.375 in SP and 5 ft, 19.6 sones @ 0.250 in SP and 5 ft, 19.7 sones @ 0.875 in SP and 5 ft, 20.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.500 in SP and 5 ft, 21.0 sones @ 0.750 in SP and 5 ft, 22.0 sones @ 0.625 in SP and 5 ft

Speed Control 48C173

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 2,353 cfm

Supply Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Supply Airflow @ 0.125 in SP 2,195 cfm

Supply Airflow @ 0.250 in SP 2,008 cfm

Supply Airflow @ 0.375 in SP 1,819 cfm

Supply Airflow @ 0.500 in SP 1,597 cfm

Voltage 115
