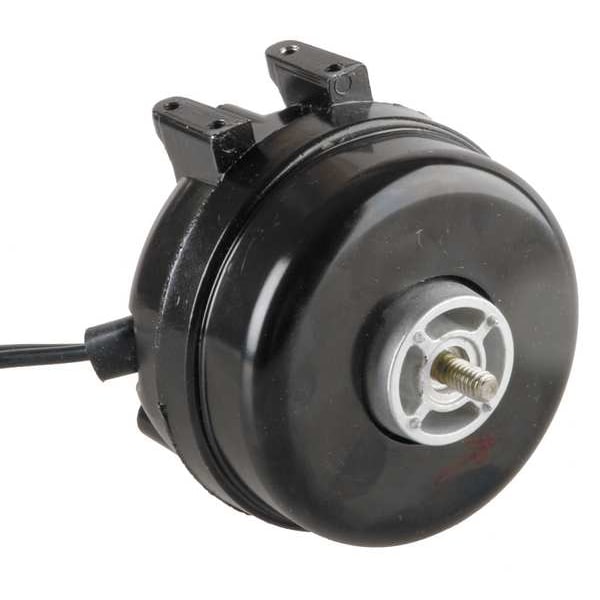

Unit Bearing Motor, 1/83 HP, 1550 rpm, 230V

SKU
Brand Dayton
Categories
Description Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/83 HP, Nameplate RPM 1,550, Voltage 230V AC, 0.33 Full Load Amps, Non-Standard Frame, Output Watts 9 W, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Aluminum, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Length 1/2 in
graingerSKU: 4YFJ9, mscSKU: , zoro_no: G0354164, mongo_id: 65bbe6e33aaddbd5a905d18c

Web Price

$43.49 / each

Qty

Product Details

Body Dia. 3 1/2 in

Bolt Circle Dia. 2 13/16 in

Country of Origin (subject to change) Korea, Republic of

Finish Black Electrostatic

Frame Non-Standard

Frame Material Aluminum

Full Load Amps 0.33

HP_ 1/83

Hz_ 60/50

Ins. Class A

Length Less Shaft 3 13/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Shaded Pole

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Cast Aluminum

Motor Mounting Position Horizontal or Vertical Shaft Up

Motor Mounting Type Rear/Foot

Motor Service Factor 1

Motor Shaft Design Threaded

Motor Shaft Rotation CWLE

Motor Sub Application Refrigerator/Freezer

Motor Thermal Protection Auto

Mounting Holes 3 Tapped

Nameplate RPM 1,550

Output Watts 9 W

Overall Length 4 5/16 in

Package Quantity 1

Phase Single

RPM Range 1,501-1,600

Shaft Dia. 1/4 in

Shaft Length 1/2 in

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
