Upblast Less Drive Package, 16-1/2 In

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Kitchens, Drive Type Belt Drive, Wheel Diameter 16 1/2 in, Base Diameter Not Applicable, Base Length 25 1/8 in, Base Width 25 1/8 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Maximum Airflow 3,996 cfm, Minimum Airflow 1,365 cfm, Maximum Motor Horsepower 1 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 1,390 RPM, Minimum Motor Speed 875 RPM, Assembly Unassembled, Housing Material Steel, Wheel Material Steel
graingerSKU: 1DYK5, mscSKU: , zoro_no: G2274474, mongo_id: 65bbe63f3aaddbd5a9019239

Web Price

$3,637.49 / each

Qty

Product Details

Application Kitchens

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 25 1/8 in Square

Base Height 1 3/4 in

Base Length 25-1/8

Base Shape Square

Base Size - Roof Ventilators 25 1/8 in x 25 1/8 in

Base Width 25-1/8

Bearing Type Regreasable Pillow Block

Brake Horsepower 13/50 hp, 7/20 hp, 27/50 hp, 79/100 hp, 1 1/20 hp

CFM Range 2515 to 3996 @ 0.0 in SP

Compatible Curb Manufacturer Part Number 1H408, 1H409, 1RL34, 2EUG8, 2EUG9, 4HX78

Country of Origin (subject to change) United States

Cutout Length 21.5 in

Cutout Size 21.5 in L x 21.5 in W

Damper Size 19 x 19 in

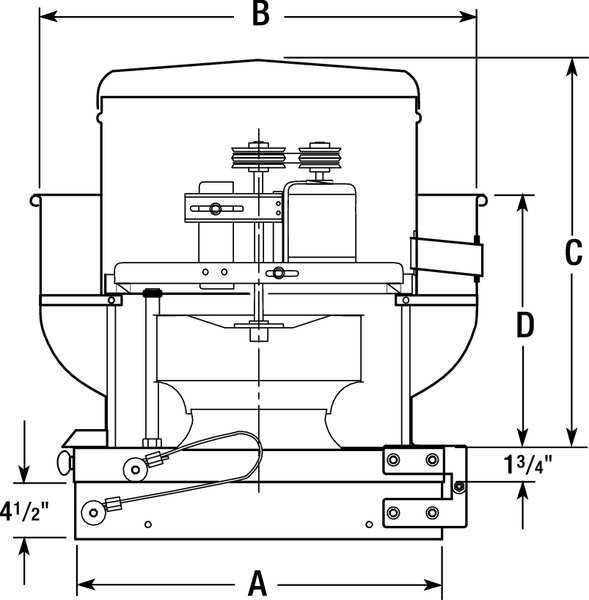

Dimension A 25 1/8 in

Dimension B 28 7/8 in

Dimension C 30 in

Dimension D 19 3/8 in

Drive Package With Motor Included No

Drive Type Belt

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Severe

Electrical Connection Power Cord

Features Clean Out Port Provides Easy Wheel Access, Heat Baffle Provides Longer Motor Life

Fixed Severe Duty 24H Roof Curb Item No. 2EUG8

For Air Type Kitchen Air

For Airflow (Dependent on Motor) 1,365 cfm to 3,996 cfm

For High-Static Pressure Applications No

Grease Capacity Severe Grease

Housing Color Gray

Housing Finish Polyester Coated

Housing Length 28.9 in

Housing Material Steel

Housing Width 28.9 in

Includes NEMA 1 Junction Box

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Upblast Ventilator

Max. Inlet Temp. 400 Degrees

Maximum Airflow 3,996 cfm

Maximum Fan Speed 1,390 RPM

Maximum Inlet Air Temperature 400 Degrees F

Maximum Motor Horsepower 1 hp

Maximum Motor Speed 1,390 RPM

Maximum Static Pressure 1 1/2 in wc

Minimum Airflow 1,365 cfm

Minimum Motor Horsepower 1/4 hp

Minimum Motor Speed 875 RPM

Motor HP Range 1/4 to 1

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Number of Speeds 1

Overall Depth 31 3/4 in

Overall Dia. 28 7/8 in

Overall Diameter 28 7/8 in

Overall Height 30 in

Overall Width 28 7/8 in

Package Quantity 1

Propeller Shaft Diameter 1 in

Resistance Properties Spark Resistant

RPM Range 875 to 1390

Safety Features Windband

Shaft Dia. Sheave End 1 in

Shaft Dia. Wheel End 1 in

Sound Level Fan RPM 1110 : 15.0 sones @ 0.000 in SP and 5 ft, 14.6 sones @ 0.125 in SP and 5 ft, 14.2 sones @ 0.250 in SP and 5 ft, 13.8 sones @ 0.375 in SP and 5 ft, 13.5 sones @ 0.500 in SP and 5 ft, 13.1 sones @ 0.625 in SP and 5 ft, 12.9 sones @ 0.750 in SP and 5 ft, 12.6 sones @ 0.875 in SP and 5 ft, 12.2 sones @ 1.000 in SP and 5 ft, Fan RPM 1265 : 18.5 sones @ 0.000 in SP and 5 ft, 18.1 sones @ 0.125 in SP and 5 ft, 17.7 sones @ 0.250 in SP and 5 ft, 17.2 sones @ 0.375 in SP and 5 ft, 16.8 sones @ 0.500 in SP and 5 ft, 16.5 sones @ 0.625 in SP and 5 ft, 16.3 sones @ 0.750 in SP and 5 ft, 16.1 sones @ 0.875 in SP and 5 ft, 15.8 sones @ 1.000 in SP and 5 ft, 15.2 sones @ 1.250 in SP and 5 ft, Fan RPM 1390 : 22.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.125 in SP and 5 ft, 21.0 sones @ 0.250 in SP and 5 ft, 20.0 sones @ 0.375 in SP and 5 ft, 19.9 sones @ 0.500 in SP and 5 ft, 19.6 sones @ 0.625 in SP and 5 ft, 19.4 sones @ 0.750 in SP and 5 ft, 19.2 sones @ 0.875 in SP and 5 ft, 19.0 sones @ 1.000 in SP and 5 ft, 18.6 sones @ 1.250 in SP and 5 ft, 18.0 sones @ 1.500 in SP and 5 ft, Fan RPM 875 : 11.0 sones @ 0.000 in SP and 5 ft, 10.6 sones @ 0.125 in SP and 5 ft, 10.1 sones @ 0.250 in SP and 5 ft, 9.9 sones @ 0.375 in SP and 5 ft, 9.7 sones @ 0.500 in SP and 5 ft, 9.7 sones @ 0.625 in SP and 5 ft, Fan RPM 965 : 12.4 sones @ 0.000 in SP and 5 ft, 12.0 sones @ 0.125 in SP and 5 ft, 11.5 sones @ 0.250 in SP and 5 ft, 11.2 sones @ 0.375 in SP and 5 ft, 10.8 sones @ 0.500 in SP and 5 ft, 10.6 sones @ 0.625 in SP and 5 ft, 10.5 sones @ 0.750 in SP and 5 ft

Spark Resistant Construction Type A

Standards UL/cUL 762, AMCA Sound & Air

Wheel & Housing Material Steel / Steel

Wheel Dia. 16 1/2 in

Wheel Diameter 16 1/2 in

Wheel Finish Nonstick Coated

Wheel Material Steel

Wheel Type Backward Inclined Centrifugal
