Upblast Less Drive Package, 21-1/4 In

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Kitchens, Drive Type Belt Drive, Wheel Diameter 21 1/4 in, Base Diameter Not Applicable, Base Length 29 1/8 in, Base Width 29 1/8 in, Base Shape Square, Maximum Static Pressure 1 3/4 in wc, Maximum Airflow 6,806 cfm, Minimum Airflow 2,144 cfm, Maximum Motor Horsepower 2 hp, Minimum Motor Horsepower 1/4 hp, Maximum Motor Speed 1,210 RPM, Minimum Motor Speed 605 RPM, Assembly Unassembled, Housing Material Steel, Wheel Material Steel
graingerSKU: 1DYK7, mscSKU: , zoro_no: G1403227, mongo_id: 65bbee11526e052139aeb156

Web Price

$4,253.74 / each

Qty

Product Details

Application Kitchens

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 29 1/8 in Square

Base Height 6.3 in

Base Length 29 1/8 in

Base Shape Square

Base Size - Roof Ventilators 29 1/8 in x 29 1/8 in

Base Width 29 1/8 in

Bearing Type Regreasable Pillow Block

Brake Horsepower 13/50 hp, 17/50 hp, 13/25 hp, 79/100 hp, 1 1/25 hp, 1 57/100 hp, 2 9/100 hp

CFM Range 3403 to 6806 @ 0.0 in SP

Compatible Curb Manufacturer Part Number 1H408, 1H409, 1RL34, 2EUG8, 2EUG9, 4HX78

Country of Origin (subject to change) United States

Cutout Length 25.5 in

Cutout Size 25.5 in L x 25.5 in W

Damper Size 23 x 23 in

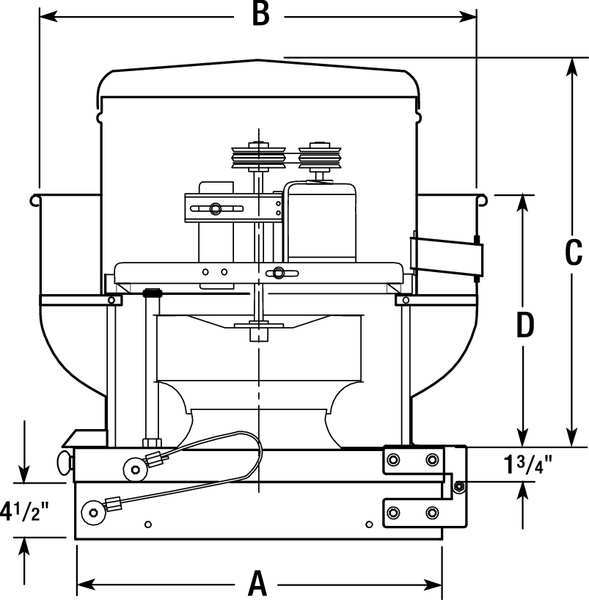

Dimension A 29 1/8 in

Dimension B 35 3/8 in

Dimension C 34 in

Dimension D 21 in

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Severe

Electrical Connection Power Cord

Features Clean Out Port Provides Easy Wheel Access, Heat Baffle Provides Longer Motor Life

Fixed Severe Duty 24H Roof Curb Item No. 2EUG9

For Air Type Kitchen Air

For Airflow (Dependent on Motor) 2,144 cfm to 6,806 cfm

For High-Static Pressure Applications No

Grease Capacity Severe Grease

Housing Color Gray

Housing Finish Polyester Coated

Housing Length 35.4 in

Housing Material Steel

Housing Width 35.4 in

Includes Clean Out Port, Heat Baffle, Hinged Base, NEMA 1 Junction Box

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Upblast Ventilator

Max. Inlet Temp. 400 Degrees

Maximum Airflow 6,806 cfm

Maximum Fan Speed 1,210 RPM

Maximum Inlet Air Temperature 400 Degrees F

Maximum Motor Horsepower 2 hp

Maximum Motor Speed 1,210 RPM

Maximum Static Pressure 1 3/4 in wc

Minimum Airflow 2,144 cfm

Minimum Motor Horsepower 1/4 hp

Minimum Motor Speed 605 RPM

Motor HP Range 1/4 to 2

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Number of Speeds 1

Overall Depth 35 3/4 in

Overall Dia. 35 3/8 in

Overall Diameter 35 3/8 in

Overall Height 40 1/4 in

Overall Width 35 3/8 in

Package Quantity 1

Propeller Shaft Diameter 1 in

Resistance Properties Spark Resistant

RPM Range 605 to 1210

Safety Features Windband

Shaft Dia. Sheave End 1 in

Shaft Dia. Wheel End 1 in

Sound Level Fan RPM 1100 : 23.0 sones @ 0.000 in SP and 5 ft, 23.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, 21.0 sones @ 0.375 in SP and 5 ft, 21.0 sones @ 0.500 in SP and 5 ft, 21.0 sones @ 0.625 in SP and 5 ft, 20.0 sones @ 0.750 in SP and 5 ft, 19.8 sones @ 0.875 in SP and 5 ft, 19.3 sones @ 1.000 in SP and 5 ft, 18.6 sones @ 1.250 in SP and 5 ft, Fan RPM 1210 : 25.0 sones @ 0.000 in SP and 5 ft, 24.0 sones @ 0.125 in SP and 5 ft, 23.0 sones @ 0.250 in SP and 5 ft, 23.0 sones @ 0.375 in SP and 5 ft, 22.0 sones @ 0.500 in SP and 5 ft, 22.0 sones @ 0.625 in SP and 5 ft, 21.0 sones @ 0.750 in SP and 5 ft, 21.0 sones @ 0.875 in SP and 5 ft, 21.0 sones @ 1.000 in SP and 5 ft, 19.8 sones @ 1.250 in SP and 5 ft, 19.7 sones @ 1.500 in SP and 5 ft, 21.0 sones @ 1.750 in SP and 5 ft, Fan RPM 605 : 8.1 sones @ 0.000 in SP and 5 ft, 7.4 sones @ 0.125 in SP and 5 ft, 6.7 sones @ 0.250 in SP and 5 ft, 6.1 sones @ 0.375 in SP and 5 ft, Fan RPM 665 : 9.4 sones @ 0.000 in SP and 5 ft, 8.8 sones @ 0.125 in SP and 5 ft, 8.1 sones @ 0.250 in SP and 5 ft, 7.5 sones @ 0.375 in SP and 5 ft, 7.0 sones @ 0.500 in SP and 5 ft, Fan RPM 760 : 12.1 sones @ 0.000 in SP and 5 ft, 11.7 sones @ 0.125 in SP and 5 ft, 10.9 sones @ 0.250 in SP and 5 ft, 10.1 sones @ 0.375 in SP and 5 ft, 9.4 sones @ 0.500 in SP and 5 ft, 9.0 sones @ 0.625 in SP and 5 ft, Fan RPM 875 : 16.3 sones @ 0.000 in SP and 5 ft, 16.3 sones @ 0.125 in SP and 5 ft, 15.2 sones @ 0.250 in SP and 5 ft, 14.7 sones @ 0.375 in SP and 5 ft, 13.5 sones @ 0.500 in SP and 5 ft, 12.9 sones @ 0.625 in SP and 5 ft, 12.4 sones @ 0.750 in SP and 5 ft, 12.5 sones @ 0.875 in SP and 5 ft, Fan RPM 960 : 18.7 sones @ 0.000 in SP and 5 ft, 18.4 sones @ 0.125 in SP and 5 ft, 17.7 sones @ 0.250 in SP and 5 ft, 17.0 sones @ 0.375 in SP and 5 ft, 16.4 sones @ 0.500 in SP and 5 ft, 15.6 sones @ 0.625 in SP and 5 ft, 15.0 sones @ 0.750 in SP and 5 ft, 14.5 sones @ 0.875 in SP and 5 ft, 14.4 sones @ 1.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Wheel & Housing Material Steel / Steel

Wheel Dia. 21 1/4 in

Wheel Diameter 21 1/4 in

Wheel Finish Nonstick Coated

Wheel Material Steel

Wheel Type Backward Inclined
