Upblast Vent, 12-1/2 In, 208-230/460V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,037 cfm, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 1/2 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7AX07, mscSKU: , zoro_no: G2584561, mongo_id: 65bbe6833aaddbd5a9035b9d

Web Price

$1,649.99 / each

Qty

Product Details

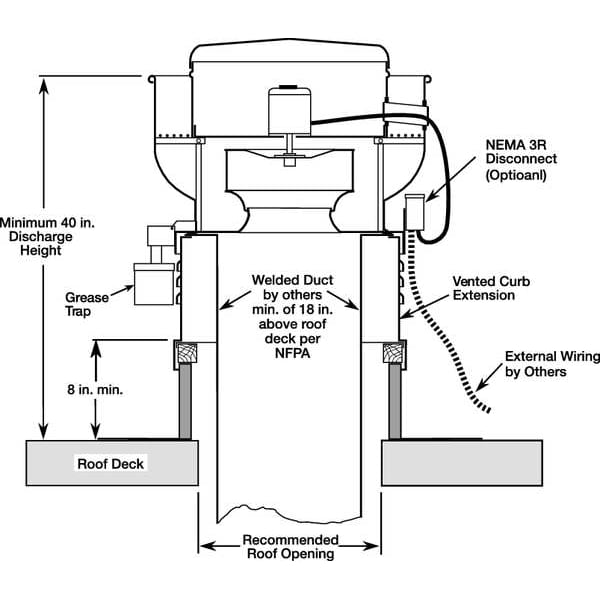

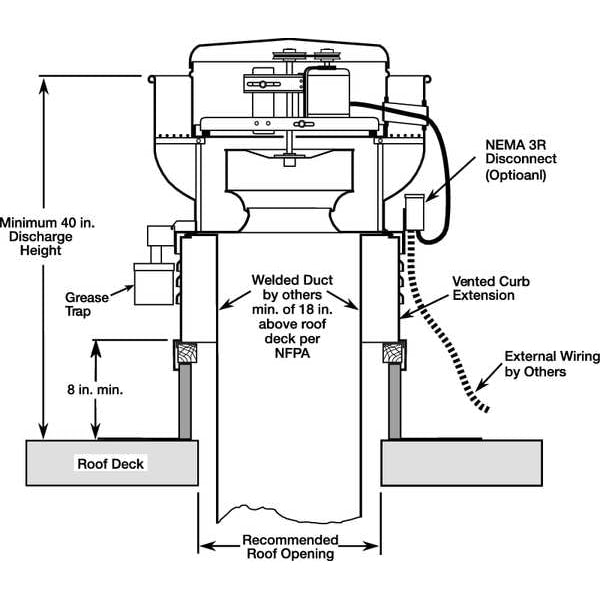

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61

Airflow @ 0.000 in SP 2,037 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 19 in Square

Base Height 1.8 in

Base Length 19 in

Base Shape Square

Base Size - Roof Ventilators 19 in x 19 in

Base Square Size - Roof Ventilators 19 x 19

Base Width 19 in

Bearing Type Sealed Pillow Block

Brake Horsepower 12/25 hp

CFM @ 0.000-In. SP 2037

CFM @ 0.125-In. SP 1979

CFM @ 0.250-In. SP 1923

CFM @ 0.375-In. SP 1869

CFM @ 0.500-In. SP 1816

CFM @ 0.625-In. SP 1763

CFM @ 0.750-In. SP 1710

CFM @ 0.875-In. SP 1642

CFM @ 1.000-In. SP 1571

CFM @ 1.250-In. SP 1406

CFM @ 1.500-In. SP 1176

Country of Origin (subject to change) Multiple

Current 1.7 to 1.7/0.85 A

Damper Size 12 x 12 in

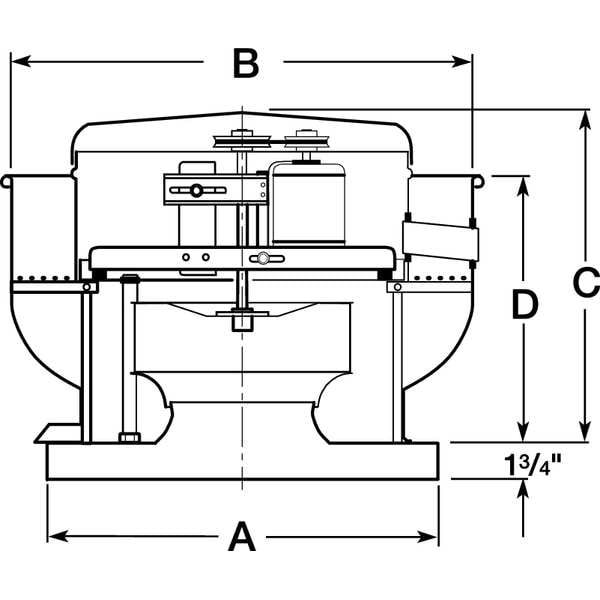

Dimension A 19 in

Dimension B 24 7/8 in

Dimension C 25 1/8 in

Dimension D 17 3/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Exhaust Airflow @ 0.000 in SP 2,037 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 1,979 cfm

Exhaust Airflow @ 0.250 in SP 1,923 cfm

Exhaust Airflow @ 0.375 in SP 1,869 cfm

Exhaust Airflow @ 0.500 in SP 1,816 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 24.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.9 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.48

Max. Inlet Temp. 300 Degrees F

Maximum Fan Speed 1,725 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 1/2 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2

Motor HP - Roof Ventilators 1/2 hp

Motor Location Out of Airstream

Motor Speed 1,725 RPM

Motor Voltage 208/230/460

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Number of Speeds 1

Overall Dia. 24 7/8 in

Overall Diameter 24 7/8 in

Overall Height 26 7/8 in

Package Quantity 1

Phase 3

Propeller Shaft Diameter 3/4 in

Recommended 12 In. Fixed Curb Item No. 2RB75

Recommended Damper Size (In.) 12 x 12

Recommended Damper Stock No. 4HX64

Requires Roof Curb for New Installation

RPM 1725

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 16.1

Sones @ 0.250-In. SP @ 5 Ft. 16.7

Sones @ 0.500-In. SP @ 5 Ft. 17.9

Sound Level 15.6 sones @ 0.000 in SP, 16.1 sones @ 0.125 in SP, 16.7 sones @ 0.250 in SP, 17.3 sones @ 0.375 in SP, 17.9 sones @ 0.500 in SP, 18.2 sones @ 0.625 in SP, 18.4 sones @ 0.750 in SP, 18.4 sones @ 1.500 in SP, 18.6 sones @ 1.250 in SP, 18.7 sones @ 0.875 in SP, 18.7 sones @ 1.000 in SP

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 208V AC/230V AC/460V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 12 1/2 in

Wheel Diameter 12 1/2 in

Wheel Material Aluminum

Wheel Type Backward Inclined
