Upblast Vent, 14-3/4 In, 115/208-230V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 26 in, Base Length 26 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 2,518 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/2 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 3ATT8, mscSKU: , zoro_no: G1503835, mongo_id: 65bbe8bc22d7a989a9910fbb

Web Price

$1,726.24 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV83

Adj. 6 3/8H Roof Curb Stock No. 4c454

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX62

Airflow @ 0.000 in SP 2,518 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Assembled

Assembly Assembled

Base Diameter Not Applicable

Base Dimension 26 in Square

Base Height 1.8 in

Base Length 26 in

Base Shape Square

Base Size - Roof Ventilators 26 in x 26 in

Base Square Size - Roof Ventilators 26 x 26

Base Width 26 in

Bearing Type Sealed Pillow Block

Brake Horsepower 13/25 hp

CFM @ 0.000-In. SP 2518

CFM @ 0.125-In. SP 2445

CFM @ 0.250-In. SP 2362

CFM @ 0.375-In. SP 2271

CFM @ 0.500-In. SP 2174

CFM @ 0.625-In. SP 2068

CFM @ 0.750-In. SP 1949

CFM @ 0.875-In. SP 1818

CFM @ 1.000-In. SP 1643

Country of Origin (subject to change) United States

Current 7.2/3.6 to 3.6 A

Cutout Length 21.5 in

Cutout Size 21.5 in L x 21.5 in W

Damper Size 19 x 19 in

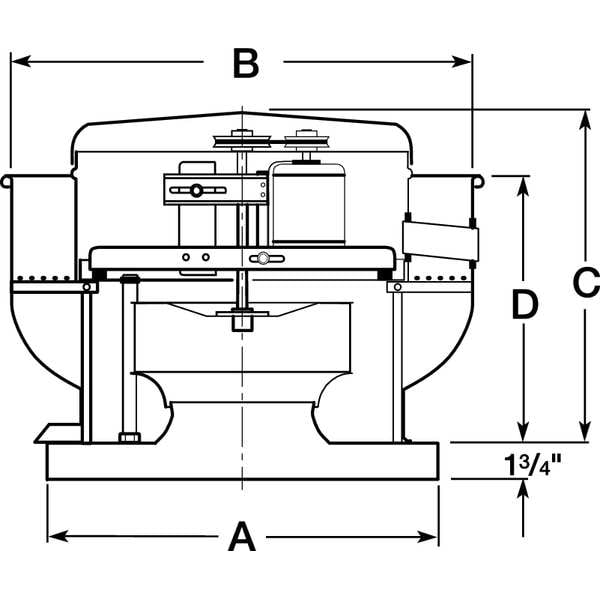

Dimension A 26 in

Dimension B 28 7/8 in

Dimension C 26 3/8 in

Dimension D 19 3/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,518 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 2,445 cfm

Exhaust Airflow @ 0.250 in SP 2,362 cfm

Exhaust Airflow @ 0.375 in SP 2,271 cfm

Exhaust Airflow @ 0.500 in SP 2,174 cfm

Exhaust Airflow @ 0.500 in SP - Range 2,000 to 4,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX56

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 28.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.9 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.52

Max. Inlet Temp. 300 Degrees F

Max. Operating Amps 7.2/3.6-3.6

Maximum Ambient Temperature 300 Degrees F

Maximum Fan Speed 1,390 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2

Motor HP - Roof Ventilators 1/2 hp

Motor Location Out of Airstream

Motor Speed 1,390 RPM

Motor Voltage 115/208/230

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Mounting Orientation Vertical

Nameplate Voltage 115/208-230V AC

Nominal Voltage 115/208-230V AC

Number of Speeds 1

Overall Depth 27 1/8 in

Overall Dia. 28 7/8 in

Overall Diameter 28 7/8 in

Overall Height 31 1/2 in

Overall Width 28 7/8 in

Package Quantity 1

Phase 1

Propeller Shaft Diameter 3/4 in

Recommended 12 In. Fixed Curb Item No. 2RB77

Recommended 8 In. Fixed Curb Item No. 4HX40

Recommended Damper Size (In.) 19 x 19

Recommended Damper Stock No. 4HX66

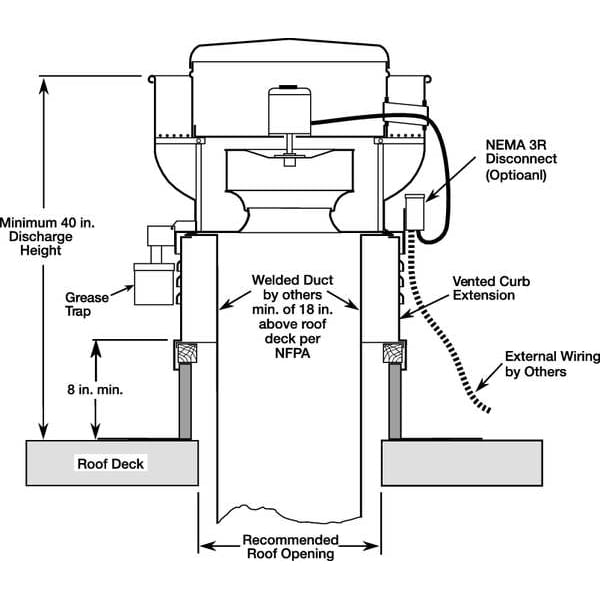

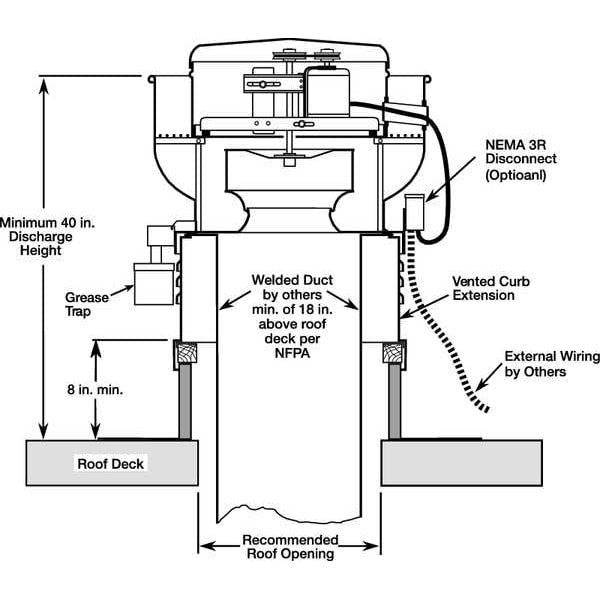

Requires Roof Curb for New Installation

Resistance Properties Spark Resistant

RPM 1390

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 14.7

Sones @ 0.250-In. SP @ 5 Ft. 14.2

Sones @ 0.500-In. SP @ 5 Ft. 12.9

Sound Level 11.0 sones @ 1.000 in SP and 5 ft, 11.4 sones @ 0.875 in SP and 5 ft, 12.1 sones @ 0.750 in SP and 5 ft, 12.5 sones @ 0.625 in SP and 5 ft, 12.9 sones @ 0.500 in SP and 5 ft, 13.2 sones @ 0.375 in SP and 5 ft, 14.2 sones @ 0.250 in SP and 5 ft, 14.7 sones @ 0.125 in SP and 5 ft, 14.9 sones @ 0.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC/208V AC/230V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 14 3/4 in

Wheel Diameter 14 3/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
