Upblast Vent, 14-3/4 In, 208-230/460V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 22 1/8 in, Base Width Not Applicable, Base Length Not Applicable, Base Shape Round, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 2,518 cfm, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 1/2 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 7AT08, mscSKU: , zoro_no: G2841517, mongo_id: 65bbe7563aaddbd5a908baac

Web Price

$1,743.74 / each

Qty

Product Details

Airflow @ 0.000 in SP 2,518 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter 22 1/8 in

Base Dimension 22 1/8 in Round

Base Length Not Applicable

Base Shape Round

Base Size - Roof Ventilators 22 1/8 in dia

Base Square Size - Roof Ventilators 22-1/8 dia.

Base Width Not Applicable

Bearing Type Sealed Pillow Block

Brake Horsepower 13/25 hp

CFM @ 0.000-In. SP 2518

CFM @ 0.125-In. SP 2445

CFM @ 0.250-In. SP 2362

CFM @ 0.375-In. SP 2271

CFM @ 0.500-In. SP 2174

CFM @ 0.625-In. SP 2068

CFM @ 0.750-In. SP 1949

CFM @ 0.875-In. SP 1818

CFM @ 1.000-In. SP 1643

Country of Origin (subject to change) Multiple

Current 1.7 to 1.7/0.85 A

Damper Size 15 x 15 in

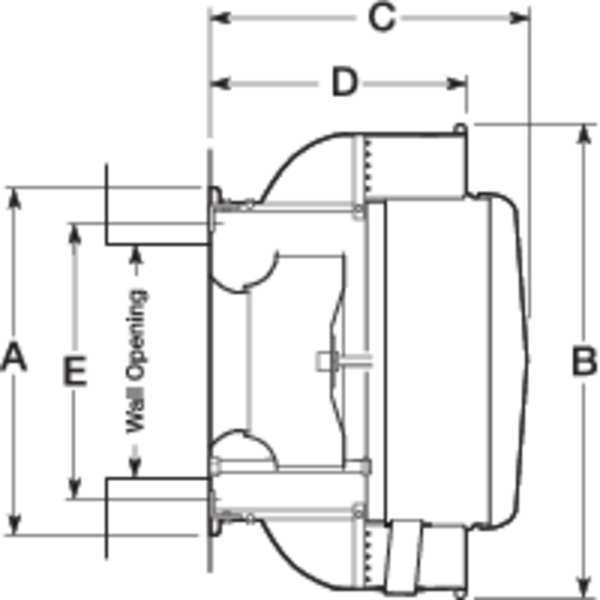

Dimension A 22 1/8 in

Dimension B 28 7/8 in

Dimension C 26 3/8 in

Dimension D 19 3/8 in

Dimension E 19 3/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Duty Rating - Roof Ventilators Standard

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,518 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 2,445 cfm

Exhaust Airflow @ 0.250 in SP 2,362 cfm

Exhaust Airflow @ 0.375 in SP 2,271 cfm

Exhaust Airflow @ 0.500 in SP 2,174 cfm

Exhaust Airflow @ 0.500 in SP - Range 2,000 to 4,999 cfm

Features Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

High-Efficiency Motor No

Housing Length 28.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.9 in

Hz_ 60

Includes Drive Package, Mounting Plate, NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.52

Max. Inlet Temp. 300 Degrees F

Max. Operating Amps 2.1-2/1.1

Maximum Fan Speed 1,390 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 in wc

Motor Efficiency Standard Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2

Motor HP - Roof Ventilators 1/2 hp

Motor Location Out of Airstream

Motor Speed 1,390 RPM

Motor Voltage 208/230/460

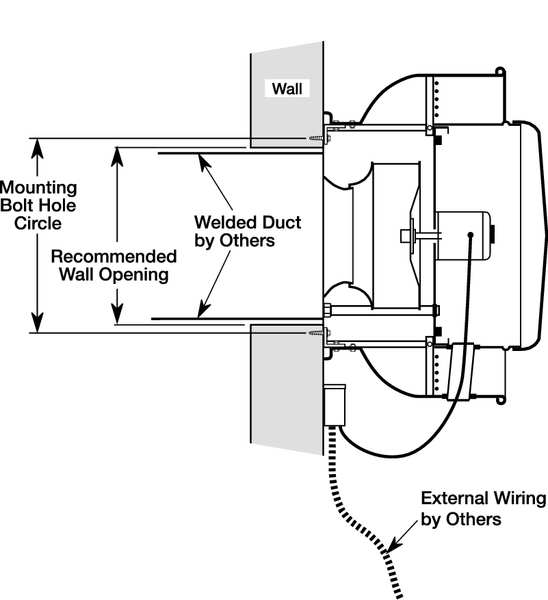

Mounting Location wall

Mounting Location - Roof Ventilators Roof, Wall

Nameplate Voltage 208-230/460V AC

Nominal Voltage 208-230/460V AC

Number of Speeds 1

Overall Dia. 28 7/8 in

Overall Diameter 28 7/8 in

Overall Height 26 3/8 in

Package Quantity 1

Phase 3

Propeller Shaft Diameter 3/4 in

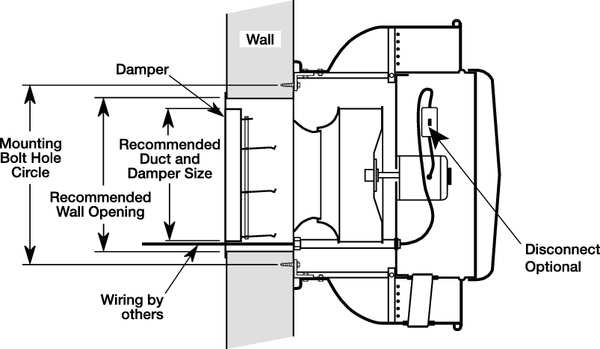

Recommended Damper Size (In.) 15 x 15

Recommended Damper Stock No. 4HX77

Resistance Properties Spark Resistant

RPM 1390

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 3/4 in

Sones @ 0.125-In. SP @ 5 Ft. 14.7

Sones @ 0.250-In. SP @ 5 Ft. 14.2

Sones @ 0.500-In. SP @ 5 Ft. 12.9

Sound Level 11.0 sones @ 1.000 in SP and 5 ft, 11.4 sones @ 0.875 in SP and 5 ft, 12.1 sones @ 0.750 in SP and 5 ft, 12.5 sones @ 0.625 in SP and 5 ft, 12.9 sones @ 0.500 in SP and 5 ft, 13.2 sones @ 0.375 in SP and 5 ft, 14.2 sones @ 0.250 in SP and 5 ft, 14.7 sones @ 0.125 in SP and 5 ft, 14.9 sones @ 0.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 208V AC/230V AC/460V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 14 3/4 in

Wheel Diameter 14 3/4 in

Wheel Material Aluminum

Wheel Type Backward Inclined
