Upblast Ventilator, Wheel 12-1/2 In, 115V

SKU
Brand Dayton
Categories
Description Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,037 cfm, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/2 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum
graingerSKU: 48C180, mscSKU: , zoro_no: G6836864, mongo_id: 65bbe70b3aaddbd5a906f0a2

Web Price

$1,663.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4c453

Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61

Airflow @ 0.000 in SP 2,037 cfm

Application Industrial and Commercial Buildings, Restaurants, Schools

Assembled/Unassembled Assembled

Assembly Assembled

Base Diameter Not Applicable

Base Dimension 19 in Square

Base Height 1.8 in

Base Length 19 in

Base Shape Square

Base Size - Roof Ventilators 19 in x 19 in

Base Square Size - Roof Ventilators 19 x 19

Base Width 19 in

Brake Horsepower 3/50 hp, 7/50 hp, 12/25 hp

CFM @ 0.000-In. SP 1015/1346/2037

CFM @ 0.125-In. SP 905/1261/1979

CFM @ 0.250-In. SP 781/1180/1923

CFM @ 0.375-In. SP 581/1091/1869

CFM @ 0.500-In. SP -/981/1816

CFM @ 0.625-In. SP -/833/1763

CFM @ 0.750-In. SP -/-/1710

CFM @ 0.875-In. SP -/-/1642

CFM @ 1.000-In. SP -/-/1571

CFM @ 1.250-In. SP -/-/1406

CFM @ 1.500-In. SP -/-/1176

Compatible Curb Manufacturer Part Number 3AZK1 to 3AZK9, 3AZL1 to 3AZL3

Compatible Speed Control 43Y140

Country of Origin (subject to change) United States

Current 6.7 A

Cutout Length 14.5 in

Cutout Size 14.5 in L x 14.5 in W

Damper Size 12 x 12 in

Dimension A 19 in

Dimension B 24 7/8 in

Dimension C 28 1/4 in

Dimension D 17 3/8 in

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Direct Drive

Drive Type - Roof Ventilators Direct Drive

Duty Rating - Roof Ventilators Standard

Exhaust Airflow @ 0.000 in SP 2,037 cfm

Exhaust Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.000 in. SP - Range 2,000 to 4,999 cfm

Exhaust Airflow @ 0.125 in SP 1,979 cfm

Exhaust Airflow @ 0.250 in SP 1,923 cfm

Exhaust Airflow @ 0.375 in SP 1,869 cfm

Exhaust Airflow @ 0.500 in SP 1,816 cfm

Exhaust Airflow @ 0.500 in SP - Range 0 to 1,999 cfm

Features EC Motors Allow Up to 80% Usable Turndown, Nonoverloading Centrifugal Wheel Design

Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54

For Air Type Kitchen Air

For High-Static Pressure Applications No

Frequency 60 Hz

Grease Capacity Standard Grease

Hazardous Location Rating Class I Groups C & D, Class II Groups F & G

Hazardous Location Specification Class I Group C, Class I Group D, Class II Group F, Class II Group G

High-Efficiency Motor Yes

Housing Length 24.9 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 24.9 in

Hz_ 60

Includes Mounting Plate, NEMA 1 Junction Box, Speed Control

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Upblast Ventilator

Max. BHP 0.06/0.14/0.48

Max. Inlet Temp. 300 Degrees F

Maximum Ambient Temperature 300 Degrees F

Maximum Fan Speed 1,725 RPM

Maximum Inlet Air Temperature 300 Degrees F

Maximum Static Pressure 1 1/2 in wc

Motor Efficiency High-Efficiency Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2

Motor HP - Roof Ventilators 1/2 hp

Motor Location Out of Airstream

Motor Type Electronically Commutated

Motor Voltage 115

Mount Type Roof Curb

Mounting Location Roof

Mounting Location - Roof Ventilators Roof

Mounting Orientation Vertical

Nameplate Voltage 115V AC

Nominal Voltage 115V AC

Number of Speeds Variable

Overall Depth 30 in

Overall Dia. 24 7/8 in

Overall Diameter 24 7/8 in

Overall Height 30 in

Overall Width 24 7/8 in

Package Quantity 1

Phase 1

Promotion Restriction Not eligible for promotion

Propeller Shaft Diameter 1/2 in

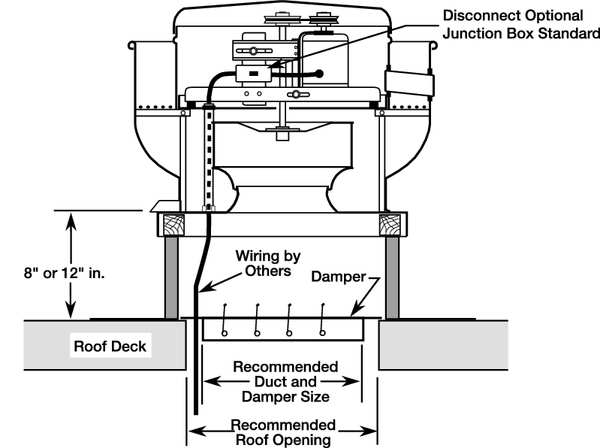

Recommended 12 In. Fixed Curb Item No. 2RB75

Recommended 8 In. Fixed Curb Item No. 4HX38

Recommended Damper Size (In.) 12 x 12

Recommended Damper Stock No. 4HX64

Requires Roof Curb for New Installation

RPM 860/1140/1725

Safety Features Fully Rolled Windband

Shaft Dia. Wheel End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 5.7/7.9/16.1

Sones @ 0.250-In. SP @ 5 Ft. 5.6/8.2/16.7

Sones @ 0.500-In. SP @ 5 Ft. -/8.0/17.9

Sound Level Fan RPM 1140 : 7.4 sones @ 0.000 in SP and 5 ft, 7.9 sones @ 0.125 in SP and 5 ft, 8.2 sones @ 0.250 in SP and 5 ft, 8.2 sones @ 0.375 in SP and 5 ft, 8.0 sones @ 0.500 in SP and 5 ft, 8.1 sones @ 0.625 in SP and 5 ft, Fan RPM 1725 : 15.6 sones @ 0.000 in SP and 5 ft, 16.1 sones @ 0.125 in SP and 5 ft, 16.7 sones @ 0.250 in SP and 5 ft, 17.3 sones @ 0.375 in SP and 5 ft, 17.9 sones @ 0.500 in SP and 5 ft, 18.2 sones @ 0.625 in SP and 5 ft, 18.4 sones @ 0.750 in SP and 5 ft, 18.7 sones @ 0.875 in SP and 5 ft, 18.7 sones @ 1.000 in SP and 5 ft, 18.6 sones @ 1.250 in SP and 5 ft, 18.4 sones @ 1.500 in SP and 5 ft, Fan RPM 860 : 5.3 sones @ 0.000 in SP and 5 ft, 5.7 sones @ 0.125 in SP and 5 ft, 5.6 sones @ 0.250 in SP and 5 ft, 5.7 sones @ 0.375 in SP and 5 ft

Speed Control 43Y140, Included On Motor

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 762

Voltage - Roof Ventilators 115V AC

Wheel & Housing Material Aluminum / Aluminum

Wheel Dia. 12 1/2 in

Wheel Diameter 12 1/2 in

Wheel Material Aluminum

Wheel Type Backward Inclined
