Home / Liquid Ring Vacuum Pump, 1 Stage, 35 cfm

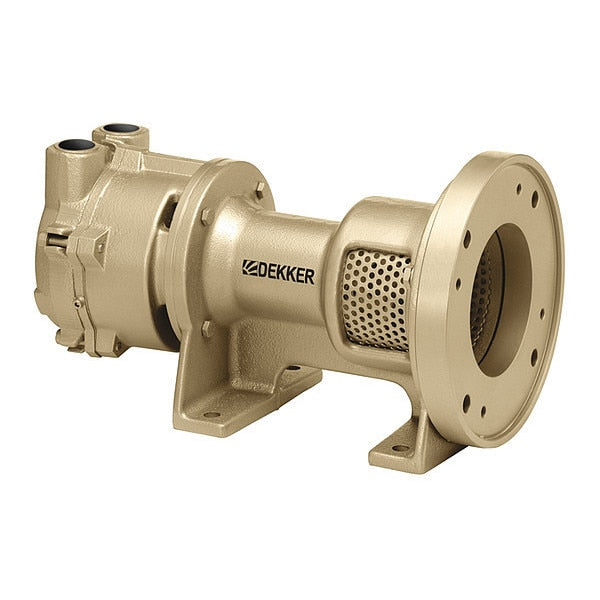

Liquid Ring Vacuum Pump, 1 Stage, 35 cfm

Liquid Ring Vacuum Pump, 1 Stage, 35 cfm

  • Dekker Vacuum Technologies
  • Pumps
  • Liquid Ring Vacuum Pump, Includes Motor No, Number of Stages 1, Motor Type Monoblock, Free Air Flow Rate 35 cfm, Maximum Vacuum 29 in Hg, Output Power 3 hp, Housing Material Cast Iron, Impeller Material 316 Stainless Steel, Inlet Size 1 in, Inlet Type FNPT, Inlet Gender Female, Outlet Size 1 in, Outlet Type NPT, Outlet Gender Female, Maximum Speed 3,500 RPM
Web Price
$4,046.24 / each
Qty

Product Details

Liquid Ring
United States
Continuous
Continuous
NEMA C
35
35 cfm
60 Hz
Cast Iron
3 hp
60
316 Stainless Steel
No
(F)NPT
Female
1 in
FNPT
1 in
70
29 in Hg
3,500 RPM
29 in Hg
Monoblock
1
(F)NPT
Female
1 in
NPT
3 hp
9.25 in
16.01 in
9.06 in
1
Three
Corded Electric
3,500 RPM
70 dB
ISO 9001:2015
230/460V AC
2.2 kW
62 lb
