Home / Thin Wall Self Locking Thread Insert, 1/2"-20 Int Thrd Sz, Carbon Steel, 5 PK
Thin Wall Self Locking Thread Insert, 1/2
Thin Wall Self Locking Thread Insert, 1/2

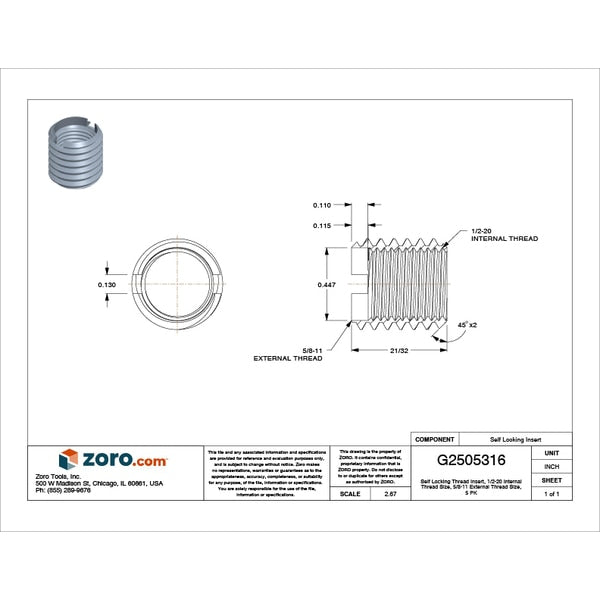

Thin Wall Self Locking Thread Insert, 1/2"-20 Int Thrd Sz, Carbon Steel, 5 PK

  • E-Z Lok
  • Raw Materials
  • Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-11, Drill Bit Size 37/64 in, External Thread Fit 2A, External Thread Size 5/8 In.-11, Finish Black Phosphate, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size 1/2 In.-20, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.578 in, Minimum Installation Depth 11/16 in, Overall Length 5/8 in, System of Measurement Inch, Thread Direction Right Hand

    graingerSKU: 4ZB92, mscSKU: 86480258, zoro_no: G2505316, mongo_id: 65bbe7293aaddbd5a907aa5e

Web Price
$12.24 / each
Qty

Product Details

For Use on Metal
163
Yes
United States
37/64 in
2A
5/8-11
Black Phosphate
5/8 in
Screwdriver, Bolt/Nut, or Power Drive Tool
2B
1/2-20
Carbon Steel
11/16
11/16 in
5/8 in
5
4ZE58
5/8-11
78,300 psi
UNF Internal/UNC External
Thin Wall
