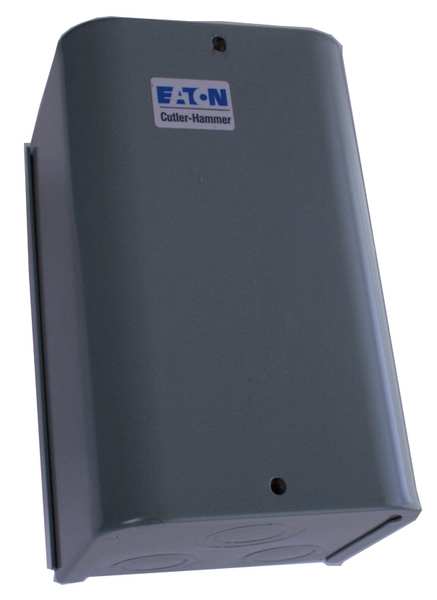

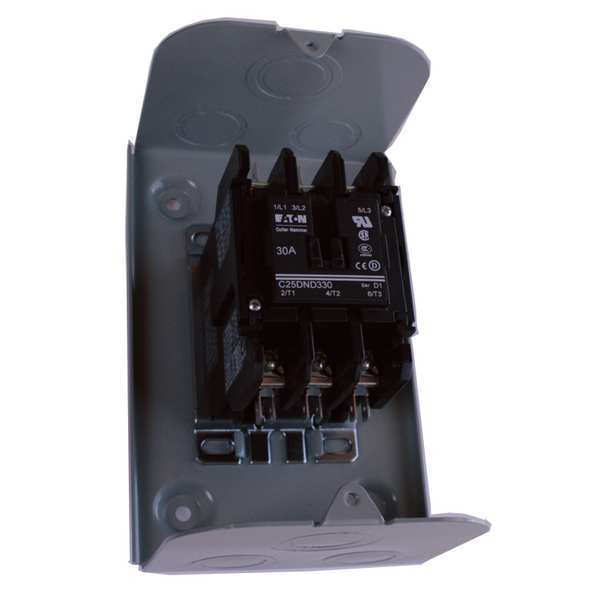

Cutler-Hammer 208/240VAC Non-Reversing Definite Purpose Contactor 3P 25A

SKU
Brand Eaton
Categories Hand Tools
Description Definite Purpose Contactor, LED Lighting Current Rating 35 A, Coil Voltage 208-240V AC, Series C25 Series, Number of Poles 3, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size D, Horsepower @ Single Phase - 240V AC 3 hp, Horsepower @ Single Phase - 120V AC 2 hp, Full Load Current - Resistive 35 A, Full Load Current - Inductive 25 A, Maximum Voltage Rating 690V AC
graingerSKU: 5XJK0, mscSKU: , zoro_no: G0920911, mongo_id: 65bbe7823aaddbd5a909c69e

Web Price

$243.09 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 25A

Auxiliary Contact Module Capacity 4

Certifications CSA Certified;UL Recognized

Coil 208-240 Vac, 50/60 Hz

Coil Voltage 208-240V AC

Coil Volts 208/240V AC

Connection Quick

Contactor Style HVACR Definite Purpose Contactor

Country of Origin (subject to change) United States

Depth 3.5 in

Enclosure NEMA type 1 enclosed

Enclosure NEMA Rating 1

Enclosure Type NEMA 1

Fluorescent Lighting Current Rating Not Applicable

Frame Size D

Frequency 50/60 Hz

Full Load Amps-Inductive 25 A

Full Load Amps-Resistive 35 A

Full Load Current - Inductive 25 A

Full Load Current - Resistive 35 A

Height 6.75 in

Horsepower @ Single Phase - 120V AC 2 hp

Horsepower @ Single Phase - 240V AC 3 hp

Horsepower @ Three Phase - 208V AC 7 1/2 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 230V 3

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 230V 7-1/2

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 10 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Includes Quick Connect Pressure Plate Terminal

Includes Shunt Not Applicable

Input Control Type 2-Wire

LED Lighting Current Rating 35 A

Locked Rotor Load 150 A @ 230V

Maximum Operating Temperature 158 Degrees F

Maximum Voltage Rating 690V AC

Minimum Operating Temperature -13 Degrees F

Model Contactor

Mounting Hole Distance - Height 3.25 in

Mounting Hole Distance - Width 2 in

Mounting Postion Horizontal, Vertical

NEMA Enclosure Rating 1

Number of Poles 3

Overall Depth 3.5 in

Overall Height 6.75 in

Overall Width 4.1 in

Package Quantity 1

Phase Three

Product Name Eaton definite purpose contactor

Reversing No

Reversing Capability Non-Reversing

Series C25 Series

Standards CSA, RoHS, UL Listed

Terminal Connection Type Quick-Disconnect Terminals

Terminals Screw/pressure plate and quick connect terminals (side-by-side)

Tungsten Lighting Current Rating Not Applicable

Weight 2.7 lb

Width 4.1 in
