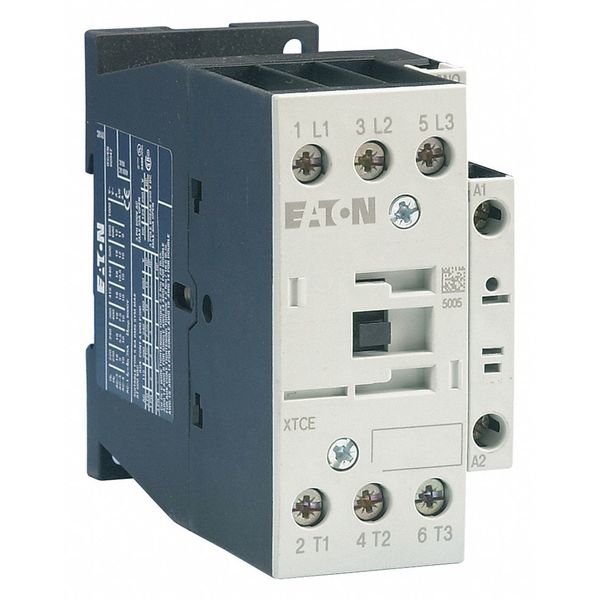

IEC Magnetic Contactor, 3 Poles, 120 V AC, 32 A, Reversing: No

Home / IEC Magnetic Contactor, 3 Poles, 120 V AC, 32 A, Reversing: No

IEC Magnetic Contactor, 3 Poles, 120 V AC, 32 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 32 A, Full Load Current - Resistive 45 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3.5 in, Terminal Connection Type Screw Terminals, Frame Size C, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC
graingerSKU: 4TYZ5, mscSKU: 08804825, zoro_no: G1807267, mongo_id: 65bbe6453aaddbd5a901b908

Web Price

$226.19 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 32A

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Certifications UL Listed;CSA Certified;IEC 60947;EN 60947

Coil Voltage 110/120V AC

Coil Volts 120 V AC

Compliances CE Marked

Contact Configuration 1 NO

Contactor Style IEC

Country of Origin (subject to change) Romania

Depth 3.82 in

Electrical Connection Screw Terminals

Electrical Operating Durability 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame C

Frame Size C

Frequency 50/60 Hz

Frequency Rating 50-60 Hz

Full Load Amps-Inductive 32 A

Full Load Amps-Resistive 45 A

Full Load Current - Inductive 32 A

Full Load Current - Resistive 45 A

Height 1.77 in

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 5 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 10 hp

Horsepower @ Three Phase - 480V AC 20 hp

Horsepower @ Three Phase - 600V AC 25 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 230V 5

HP @ 1 Phase - 240V 5 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 10 hp

HP @ 3 Phase - 480V 20 hp

HP @ 3 Phase - 575V 25 hp

Hp Rating - Max 3, 5, 5/ 10, 10, 20, 25 hp (1/3PH @115,200,230/200,230,460,575 V)

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.16 in

Mounting Hole Distance - Height 2.95 in

Mounting Hole Distance - Width 1.38 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of Poles 3

Overall Depth 4 in

Overall Height 2 in

Overall Width 3.5 in

Package Quantity 1

Product Height 2 in

Product Length/Depth 4 in

Product Name Eaton XT IEC contactor

Product Width 3.5 in

Response Time Less Than14 msec (AC Operated Opening Delay), Less Than22 msec (AC Operated Closing Delay), Less Than30 msec (DC Operated Opening Delay), Less Than47 msec (DC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 1.77 in
