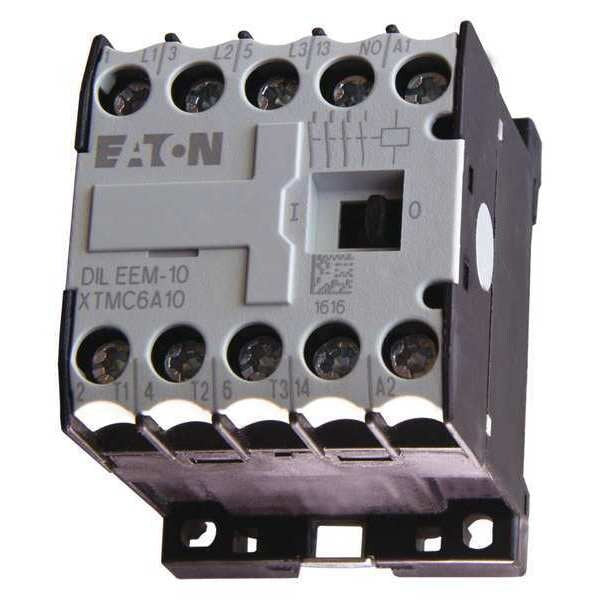

IEC Mini Magnetic Contactor, 3 Poles, 120 V AC, 6 A, Reversing: No

SKU
Brand Eaton
Categories
Description Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 6 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.5 in, Overall Width 2.5 in, Terminal Connection Type Screw Terminals, Frame Size A, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC
graingerSKU: 4WUZ3, mscSKU: , zoro_no: G2391182, mongo_id: 65bbe6673aaddbd5a9029d4e

Web Price

$66.94 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 6.60A

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Certifications UL Listed;CSA Certified;IEC 60947;EN 60947

Coil Voltage 110/120V AC

Coil Volts 120 V AC

Compliances CE Marked

Contact Configuration 1 NO

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 2.05 in

Electrical Connection Screw Terminals

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame A

Frame Size A

Frequency 50/60 Hz

Frequency Rating 50-60 Hz

Full Load Amps-Inductive 6 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 6 A

Full Load Current - Resistive 20 A

Height 1.77 in

Horsepower @ Single Phase - 120V AC 1/4 hp

Horsepower @ Single Phase - 240V AC 1 hp

Horsepower @ Three Phase - 208V AC 1 1/2 hp

Horsepower @ Three Phase - 240V AC 2 hp

Horsepower @ Three Phase - 480V AC 3 hp

Horsepower @ Three Phase - 600V AC 3 hp

HP @ 1 Phase - 120V 1/4 hp

HP @ 1 Phase - 230V 3/4

HP @ 1 Phase - 240V 3/4 hp

HP @ 3 Phase - 208V 1 1/2 hp

HP @ 3 Phase - 240V 2 hp

HP @ 3 Phase - 480V 3 hp

HP @ 3 Phase - 575V 3 hp

Hp Rating - Max 0.25, 0.75, 1/ 1.5, 2, 3, 3 hp (1/3PH @115,200,230/200,230,460,575 V)

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC/DC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.16 in

Mounting Hole Distance - Height 1.98 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of Poles 3

Overall Depth 2 in

Overall Height 2.5 in

Overall Width 2.5 in

Package Quantity 1

Product Height 2.5 in

Product Length/Depth 2 in

Product Name Eaton XT IEC mini contactor

Product Width 2.5 in

Response Time 14 msec (AC Coil Closing Delay Min), 15 msec (DC Coil Opening Delay min), 18 msec (AC Coil Opening Delay Max), 21 msec (AC Coil Closing Delay Max), 25 msec (DC Coil Opening Delay Max), 26 msec (DC Coil Closing Delay Min), 35 msec (DC Coil Closing Delay Max), 8 msec (AC Coil Opening Delay min)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing mini contactor

Width 1.77 in
