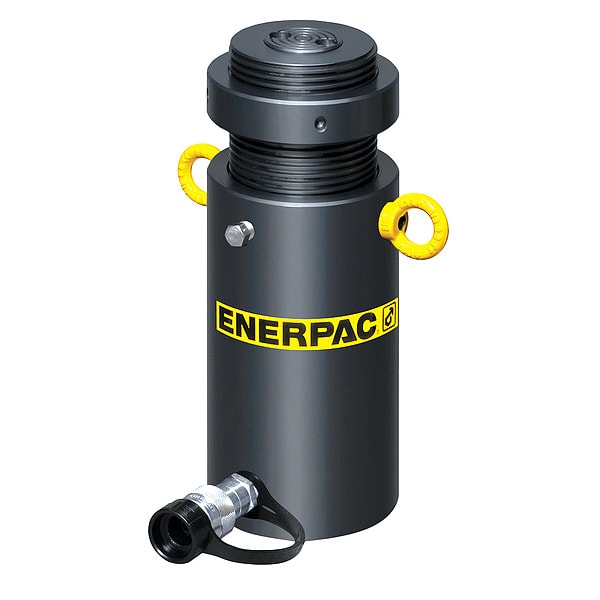

HCL5012, 62 ton Capacity, 11.81 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
HCL5012, 62 ton Capacity, 11.81 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
HCL5012, 62 ton Capacity, 11.81 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder

HCL5012, 62 ton Capacity, 11.81 in Stroke, Single-Acting, High Tonnage, Lock Nut Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Single Acting, High Cycle, Steel, Nominal Capacity 50 ton, Stroke Length 11 3/4 in, Nominal Stroke Length 12 in, Effective Push Area 12.17 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 143.78 cu in, Retracted Height 16.3 in, Extended Height 28.1 in, Outside Dia. 5.12 in, Base Mounting Thread Size M8, Weight 94 lb, Series HCL, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 3.94 in

    graingerSKU: 55PP26, mscSKU: , zoro_no: G5521477, mongo_id: 65bbe95a22d7a989a994dcf5

Web Price
$4,773.74 / each
Qty

Product Details

Lift, Push, Hold
M8
Steel
3.94 in
China
50 tons
High Cycle
12.17 sq in
714 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,000 psi
50 ton
12 in
143.78 cu in
143.78 cu in
5.12 in
1
TR 100 x 4
Not eligible for promotion
414 mm
HCL
Single Acting
300 mm
94 lb
