Home / HCR1004, 113 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

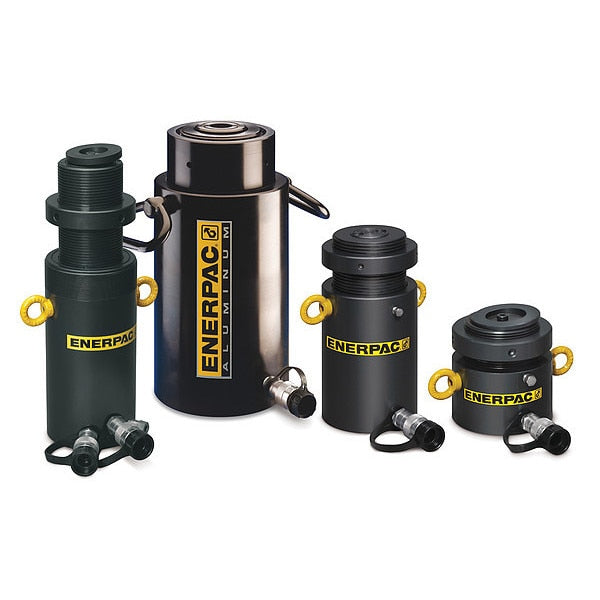

HCR1004, 113 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR1004, 113 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR1004, 113 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 100 ton, Stroke Length 3 7/8 in, Nominal Stroke Length 5 in, Effective Push Area 22.19 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 87.35 cu in, Retracted Height 9.92 in, Extended Height 13.9 in, Outside Dia. 6.89 in, Plunger Dia. 3.74 in, Base Mounting Thread Size M12, Weight 90 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 5.31 in

    graingerSKU: 55PP31, mscSKU: , zoro_no: G5519587, mongo_id: 65bbea1722d7a989a9995983

Web Price
$5,827.49 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
5.31 in
China
100 tons
High Cycle
22.19 sq in
352 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
100 ton
5 in
Advance: 87.35 cu in; Retract: 44.09 cu in
87.35 cu in
6.89 in
1
3.74 in
Not eligible for promotion
252 mm
HCR
Double Acting
100 mm
90 lb
