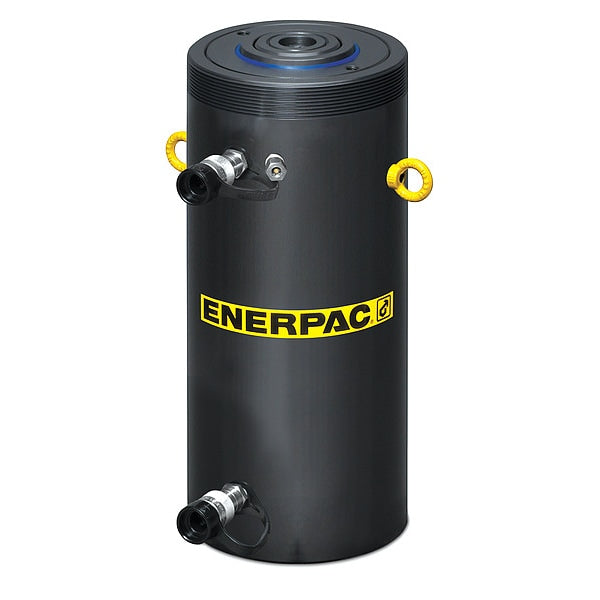

Home / HCR1508, 168 ton Capacity, 7.87 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR1508, 168 ton Capacity, 7.87 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR1508, 168 ton Capacity, 7.87 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR1508, 168 ton Capacity, 7.87 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR1508, 168 ton Capacity, 7.87 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 150 ton, Stroke Length 7 7/8 in, Nominal Stroke Length 10 in, Effective Push Area 33.14 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 260.97 cu in, Retracted Height 15.63 in, Extended Height 23.5 in, Outside Dia. 8.46 in, Plunger Dia. 4.72 in, Base Mounting Thread Size M12, Weight 209 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 6.5 in

    graingerSKU: 55PP38, mscSKU: , zoro_no: G5527926, mongo_id: 65bbe87822d7a989a98f7d62

Web Price
$8,882.49 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
6.5 in
China
150 tons
High Cycle
33.14 sq in
597 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
150 ton
10 in
Advance: 260.97 cu in; Retract: 122.94 cu in
260.97 cu in
8.46 in
1
4.72 in
Not eligible for promotion
397 mm
HCR
Double Acting
200 mm
209 lb
