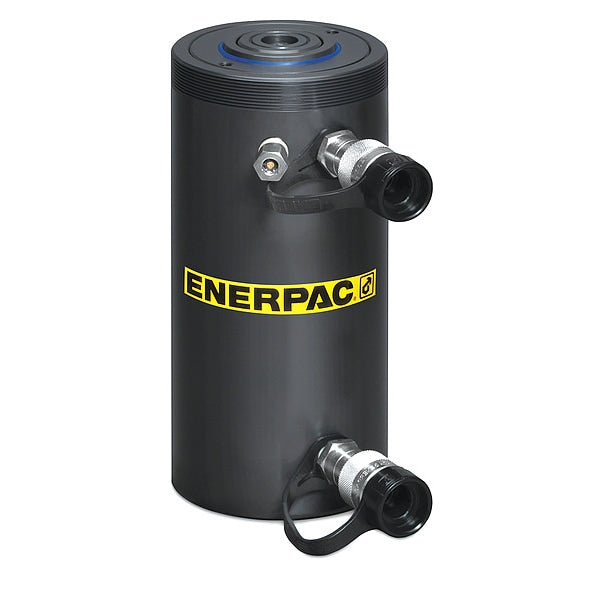

Home / HCR504, 62 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR504, 62 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR504, 62 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
HCR504, 62 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

HCR504, 62 ton Capacity, 3.94 in Stroke, Double-Acting, High Tonnage Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 50 ton, Stroke Length 3 7/8 in, Nominal Stroke Length 5 in, Effective Push Area 12.17 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 47.93 cu in, Retracted Height 9.17 in, Extended Height 13.1 in, Outside Dia. 5.12 in, Plunger Dia. 2.76 in, Base Mounting Thread Size M12, Weight 46 lb, Series HCR, Includes (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve, Bore Dia. 3.94 in

    graingerSKU: 55PP48, mscSKU: , zoro_no: G5520883, mongo_id: 65bbe89c22d7a989a99061fb

Web Price
$3,633.74 / each
Qty

Product Details

Lift, Lower, Push
M12
Steel
3.94 in
China
50 tons
High Cycle
12.17 sq in
333 mm
(2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve
Steel
10,150 psi
50 ton
5 in
Advance: 47.93 cu in; Retract: 24.44 cu in
47.93 cu in
5.12 in
1
2.76 in
Not eligible for promotion
233 mm
HCR
Double Acting
100 mm
46 lb
