Home / RC308, 32.4 ton Capacity, 8.25 in Stroke, General Purpose Hydraulic Cylinder

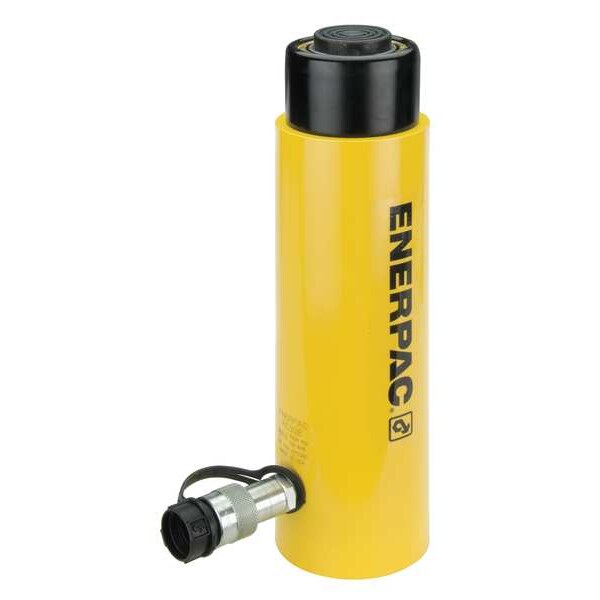

RC308, 32.4 ton Capacity, 8.25 in Stroke, General Purpose Hydraulic Cylinder

RC308, 32.4 ton Capacity, 8.25 in Stroke, General Purpose Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 30 ton, Max. Push Capacity 30 ton, Stroke Length 8 1/4 in, Nominal Stroke Length 8 in, Effective Push Area 6.49 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 53.56 cu in, Retracted Height 15.25 in, Extended Height 23.5 in, Outside Dia. 4 in, Plunger Dia. 2.25 in, Plunger Thread Size 1-1/2 In.-16, Collar Thread Size 3-5/16 In.-12, Center Hole Dia. 2 1/4 in, Series RC, Includes Coupler, Dust Cap

    graingerSKU: 5ZL49, mscSKU: 80013204, zoro_no: G1172263, mongo_id: 65bbe6683aaddbd5a902adb0

Web Price
$2,971.24 / each
Qty

Product Details

Steel
2.31 in
2 1/4 in
3-5/16-12
China
General Purpose
6.49 sq in
6.49 sq in
23.5 in
Paint
No
Coupler, Dust Cap
10,000 psi
30 ton
30 ton
8 in
53.56 cu. in.
53.56 cu in
4 in
1
2.25 in
1-1/2-16
Not eligible for promotion
15.25 in
RC
Single-Acting
8 1/4 in
General Purpose
30 tons
