Home / RC504, 55.2 ton Capacity, 4.00 in Stroke, General Purpose Hydraulic Cylinder

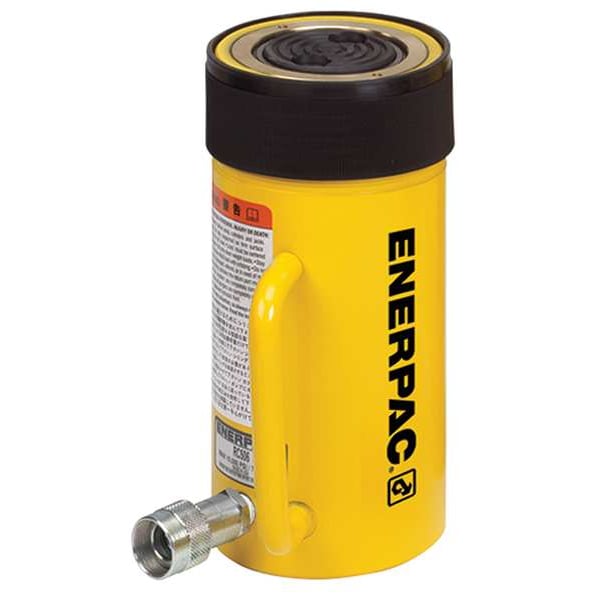

RC504, 55.2 ton Capacity, 4.00 in Stroke, General Purpose Hydraulic Cylinder

RC504, 55.2 ton Capacity, 4.00 in Stroke, General Purpose Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Single Acting, General Purpose, Steel, Nominal Capacity 50 ton, Max. Push Capacity 50 ton, Stroke Length 4 in, Nominal Stroke Length 4 in, Effective Push Area 11.04 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 44.18 cu in, Retracted Height 8.94 in, Extended Height 12.95 in, Outside Dia. 5 in, Plunger Dia. 3.13 in, Base Bolt Circle Dia. 3.75 in, Center Hole Dia. 3 1/8 in, Series RC, Includes Coupler, Dust Cap

    graingerSKU: 5ZL51, mscSKU: 80013246, zoro_no: G1967357, mongo_id: 65bbe8e822d7a989a9922e41

Web Price
$2,582.49 / each
Qty

Product Details

3.75 in
Steel
3.75 in
3 1/8 in
5-12
China
General Purpose
11.04 sq in
11.04 sq in
12.94 in
Paint
Yes
Coupler, Dust Cap
10,000 psi
50 ton
50 ton
4 in
44.18 cu. in.
44.18 cu in
5 in
1
3.13 in
Not eligible for promotion
8.94 in
RC
Single-Acting
4 in
1/2-13
General Purpose
50 tons
