Home / RD1610, 16 ton Capacity Capacity, 10.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

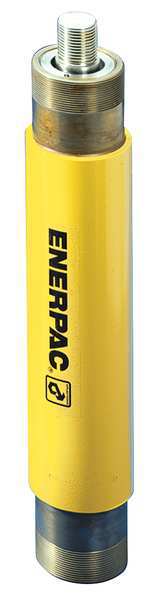

RD1610, 16 ton Capacity Capacity, 10.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

RD1610, 16 ton Capacity Capacity, 10.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, High Cycle, Steel, Nominal Capacity 15 ton, Max. Push Capacity 16 ton, Stroke Length 10 1/4 in, Nominal Stroke Length 10 in, Effective Push Area 3.14 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 32.2 cu in, Retracted Height 19.31 in, Extended Height 29.56 in, Outside Dia. 3 in, Plunger Dia. 1.38 in, Plunger Thread Size 1-1/2 In.-12, Collar Thread Size 2-5/8 In.-16, Center Hole Dia. 1 1/8 in, Series RD

    graingerSKU: 18Y539, mscSKU: , zoro_no: G5569977, mongo_id: 65bbee41526e052139afcd1c

Web Price
$3,666.25 / each
Qty

Product Details

Steel
2 in
1 1/8 in
2-5/8-16
China
High Cycle
Advance: 3.14 sq in; Retract: 1.66 sq in
3.14 sq in
29.56 in
Paint
No
10,000 psi
16 ton
15 ton
10 in
Advance: 32.2 cu in; Retract: 16.98 cu in
32.2 cu in
3 in
1
1.38 in
1-1/8-12
Not eligible for promotion
19.31 in
RD
Double-Acting
10 1/4 in
Double-Acting
16 tons
