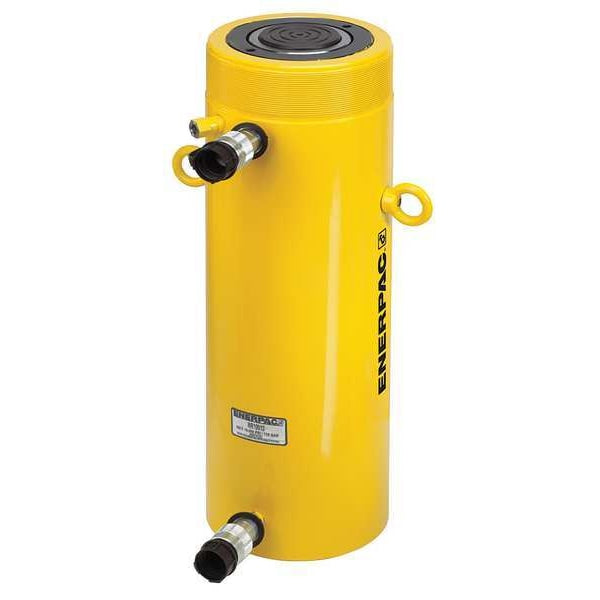

RR506, 55.3 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

RR506, 55.3 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

  • Enerpac
  • Lifting and Hydraulics
  • Hydraulic Ram, Double Acting, General Purpose, Steel, Nominal Capacity 50 ton, Max. Push Capacity 50 ton, Stroke Length 6 1/8 in, Nominal Stroke Length 6 in, Effective Push Area 11.06 sq in, Max. Pressure 10,000 psi, Oil Capacity Push 67.77 cu in, Retracted Height 13.06 in, Extended Height 19.19 in, Outside Dia. 5 in, Plunger Dia. 3.13 in, Collar Thread Size 5 In.-12, Center Hole Dia. 12 in, Series RR, Includes Dust Cap, Female Coupler

    graingerSKU: 23NR39, mscSKU: , zoro_no: G6968315, mongo_id: 65bbe87822d7a989a98f7d6d

Web Price
$5,241.25 / each
Qty

Product Details

Steel
3.75 in
12 in
5-12
China
General Purpose
Advance: 11.06 sq in; Retract: 3.4 sq in
11.06 sq in
19.19 in
Paint
Yes
Dust Cap, Female Coupler
10,000 psi
50 ton
50 ton
6 in
Advance: 67.77 cu in; Retract: 21 cu in
67.77 cu in
5 in
1
3.13 in
1-12
Not eligible for promotion
13.06 in
RR
Double-Acting
6 1/8 in
Double-Acting
50 tons
