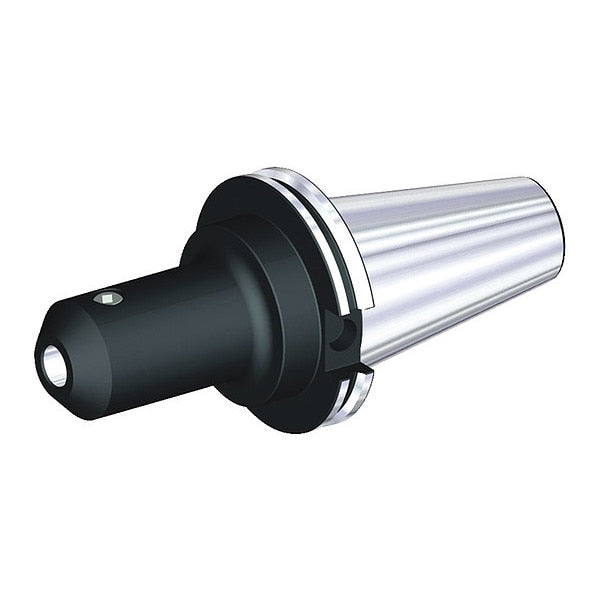

End Mill Holder, Taper, CV50

SKU
Brand Erickson
Categories Adhesives, Epoxy & Sealants
Description End Mill Holder, Taper Size CV50, Projection 3 in, Nose Dia. 66.68mm, Measurement System Fractional Inch

Web Price

$268.74 / each

Qty

Product Details

Coolant Fed Coolant Through

Country of Origin (subject to change) Slovenia

Dimension Type Decimal Inch

Features Axial Adjustment with Consistent 3/8 in Drive Throughout Complete Range of Adapters, No Through-the-Toolholder Coolant Capability (Form A only) Unless Stop Screw is Removed

For Shank Type 5 Degrees NAS 987 Whistle Notch Cutting Toolholders

Measurement System Fractional Inch

Nose Dia. 66.68mm

Overall Length 7 in

Package Quantity 1

Projection 3 in

Shank Dia. 2.7500

Shank Length 4.1250

Shank Type - Machining Taper

Standards ANSI B5.5

Taper Size CV50
