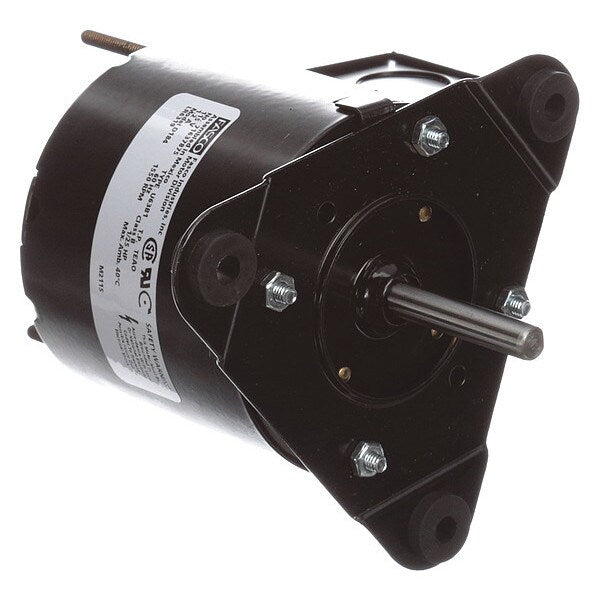

Home / HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3
HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

  • Fasco
  • HVAC & Refrigeration
  • Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.2 A, 3.3 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1

    graingerSKU: 38N544, mscSKU: , zoro_no: G5519753, mongo_id: 65bbe88b22d7a989a98feeef

Web Price
$111.66 / each
Qty

Product Details

HVAC/R
3 5/16 in
2 7/8 in
No
Exterior
F2
Mexico
Continuous
3.3
1.2 A
1/25
60 Hz
B
3 9/16 in
40 Degrees C
HVAC/R
Sleeve
Shaded Pole
Totally Enclosed Air-Over
Steel
All Angle
Stud
1
Flat
CWSE
Direct Drive Fan/Blower
Auto
Lug
(6) #8-32
2-7/8 x 2-7/8
2/Opposite Shaft End
2 7/8 in x 2 7/8 in
1,550
1
1
1
4 15/16 in
1
Single
1,501-1,600
5/16 in
1 3/4 in
CSA Certified, UL Recognized
#8-32
2-7/8 in x 2-7/8 in
No
No
115V AC
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
5 lb
