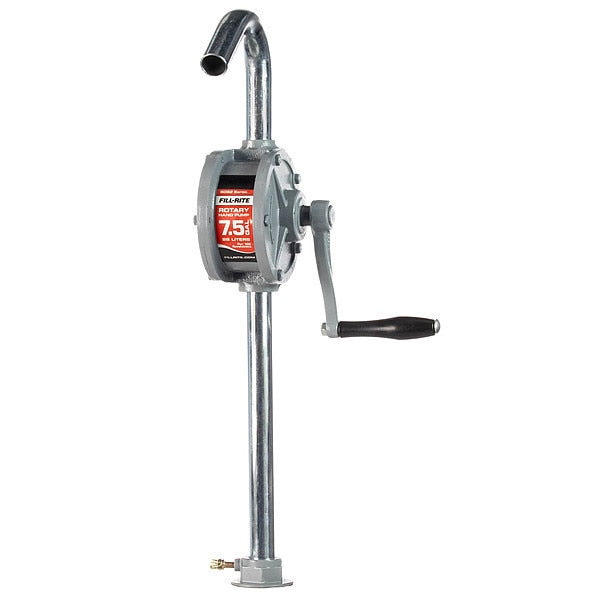

7.5 GPM Rotary Hand-Operated Drum Pump

Home / 7.5 GPM Rotary Hand-Operated Drum Pump

7.5 GPM Rotary Hand-Operated Drum Pump

SKU
Brand Fill-Rite
Categories Pumps
Description Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Features Rotary Action Hand Pump w/ 2 in NPT inlet, Seal Material Buna-N, Adapter Connection Type NPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes, Runs Dry Yes, Nozzle Operation Not Applicable
graingerSKU: 3MMD4, mscSKU: , zoro_no: G6196382, mongo_id: 65bbe79b3aaddbd5a90a479b

Web Price

$112.49 / each

Qty

Product Details

Action Type Rotary

Adapter Connection Type NPT

Adapter Material Cast Iron

Application To Transfer Diesel, Kerosene, Machine Oil, Petroleum Products

Bung Connection Dia. 2 in

Compatible Chemicals Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid

Country of Origin (subject to change) China

Diesel Exhaust Fluid Compatible No

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 7/8 in

Features Rotary Action Hand Pump w/ 2 in NPT inlet

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils, Kerosene, Motor Oils, Stoddard Solvent, Windshield Washer Fluid

For Use With Machine Oil and Petroleum Products

Gear Lube NT

GPM 7.5

Grease NT

Height Above Container 10 3/4 in

Hose Cover Material Not Applicable

Hose Inside Dia. Not Applicable

Hose Length Not Applicable

Hose Outside Dia. Not Applicable

Hose Tube Material Not Applicable

Housing Material Cast iron

Housing Material - Pumps Cast Iron

Includes 1 1/2 in and 2 in NPT Bung Mounts, No Drip Valve, Pail Spout, Telescoping Steel Suction Pipe

Includes Bung Adapter Yes

Includes Discharge Hose No

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 3/4

Length 39

Max. Flow Rate 9.6 oz per stroke

Max. Fluid Temp. 120 Degrees F

Max. Head - Pumps 6 ft

Max. Head Pressure 50 psi

Max. Oil Flow 9.6 oz per stroke

Max. Outlet Pressure 50 psi

Max. Viscosity 1,500 SUS

Metered No

Min. Operating Temp. 0 Degrees F

Mount Type Bung

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, E85, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Nozzle Material Not Applicable

Nozzle Operation Not Applicable

Package Quantity 1

Power Source Hand Operated

Pump Body Material Cast Iron

Pump Connection ID 2 in

Pump Connection OD 2 1/8 in

Runs Dry Yes

Seal Material Buna-N

Self-Priming Yes

Spout Connection Size 3/4 in

Spout Length 3 in
