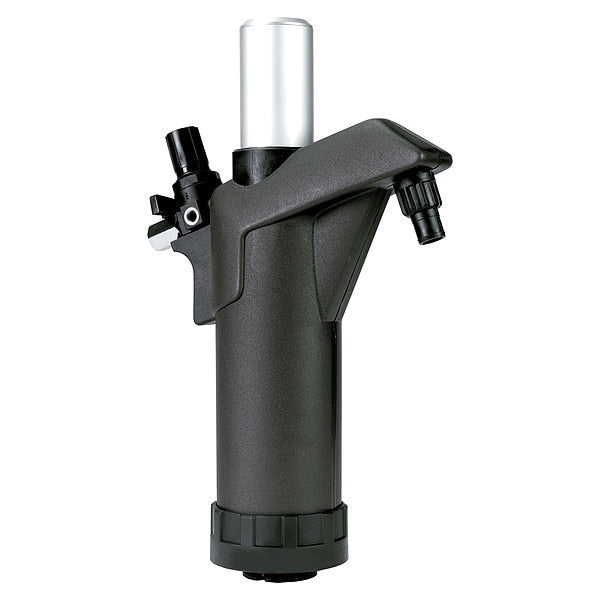

Air Drum Pump, Pneumatic, DEF, Size 1 In

Home / Air Drum Pump, Pneumatic, DEF, Size 1 In

Air Drum Pump, Pneumatic, DEF, Size 1 In

SKU
Brand Fill-Rite
Categories Pumps
Description Air Operated Drum Pump, Max. Air Pressure 100 psi, Spout Connection Size 3/4 in, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 10 in, Explosion Proof No, Discharge Connection Type Hose Barb, Features Also compatilble with engine oil, hydraulic oil, mild acids, water, anti-freeze, diesel, pariffin and degreasers, Spout Length 1 in, Food Grade No, Air Outlet Size 3/4 in, Bung Connection Dia. 2 in, Variable Speed No, Includes Discharge Hose No, Noise Level 74 db
graingerSKU: 6XGV4, mscSKU: 03625563, zoro_no: G2522475, mongo_id: 65bbe7ba9a749db8227532b1

Web Price

$506.24 / each

Qty

Product Details

Adapter Connection Type MNPT

Adapter Material Polypropylene

Air Inlet Size 1/4 in BSP

Air Outlet Size 3/4 in

Bung Connection Dia. 2 in

Compatible Chemicals Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Kerosene, Motor Oil, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid

Country of Origin (subject to change) United Kingdom

Cylinder Material Polypropylene

Delivers 6.5gpm

Diesel Exhaust Fluid Compatible Yes

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 7/8 in

Explosion Proof No

Features Also compatilble with engine oil, hydraulic oil, mild acids, water, anti-freeze, diesel, pariffin and degreasers

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, DEF, Diesel Fuel, Ethylene Glycol, Glycerin, Hydraulic Oil, Kerosene, Motor Oil, Stoddard Solvent, Windshield Washer Fluid

For Use With DEF, Gear Lube, Hydraulic Oils, Light Oils

Gear Lube NT

Grease NT

Height Above Container 13 in

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Includes Telescoping Suction Tube

Includes Bung Adapter Yes

Includes Discharge Hose No

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 1

Max. Air Inlet (PSI) 100

Max. Air Pressure 100 psi

Max. Flow GPM 6.5 gpm

Max. Flow Rate 30 gpm

Max. Fluid Temp. 120 Degrees F

Max. GPM for Oil 4

Max. GPM for Water 6.5

Max. Head - Pumps 6 ft

Max. Head Pressure 50 psi

Max. Liquid Temp. 120 Degrees F

Max. Oil Flow 4 gpm

Max. Outlet Pressure 100 psi

Max. Viscosity 50 SUS

Metered No

Min. Air Pressure 30 psi

Noise Level 74 db

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, E85, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Outlet Size 3/4

Overall Length 10 in

Package Quantity 1

Power Source Air

Pump Connection ID 1 in

Pump Connection OD 1 1/8 in

Pump Connection Type FNPT

Ratio 1:1

Runs Dry Yes

Seal Material Fluorocarbon

Self-Priming Yes

Spout Connection Size 3/4 in
