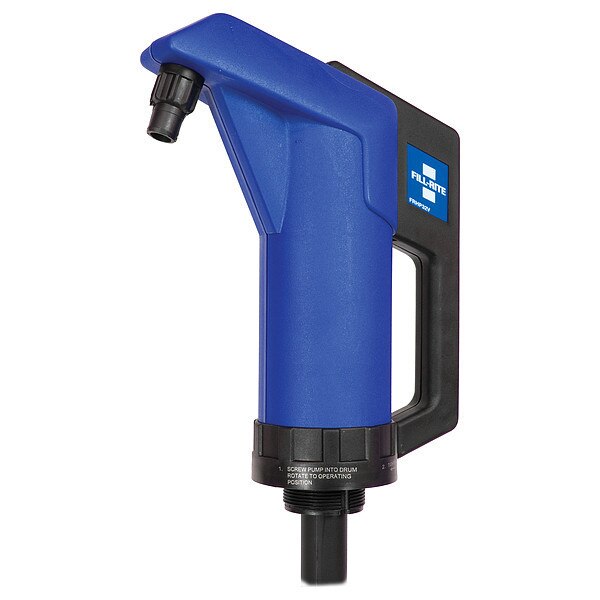

Piston Drum Pump, Polypropylene, 3/4In, DEF

Home / Piston Drum Pump, Polypropylene, 3/4In, DEF

Piston Drum Pump, Polypropylene, 3/4In, DEF

SKU
Brand Fill-Rite
Categories Pumps
Description Hand Operated Drum Pump, Max. Outlet Pressure 50 psi, Pump Connection OD 2 1/8 in, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Includes Discharge Hose No, Piston Material Polypropylene, Features Piston lever pump w/ 2 in NPT inlet, Seal Material Viton, For Use With AUS32, Caustics, Cleaners, DEF, Degreasers, Deionized Water, Solvents, Adapter Connection Type MNPT, Discharge Connection Type Hose Barb, For Container Type Drum, Includes Bung Adapter Yes, Includes Nozzle No
graingerSKU: 6XGV2, mscSKU: 03629854, zoro_no: G0867815, mongo_id: 65bbe9b522d7a989a9971a9c

Web Price

$156.24 / each

Qty

Product Details

Action Type Piston

Adapter Connection Type MNPT

Adapter Dia. 2

Adapter Material Polypropylene

Adapter Type Bung

Application DEF, Solvents, Cleaners, Degreasers, Deionized Water, Caustics, AUS32

Bung Connection Dia. 2 in

Compatible Chemicals Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Ethylene Glycol, Fertilizers, Glycerin, Motor Oil, Windshield Washer Fluid

Country of Origin (subject to change) United Kingdom

Diesel Exhaust Fluid Compatible Yes

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 7/8 in

Features Piston lever pump w/ 2 in NPT inlet

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Antifreeze, Automatic Transmission Fluid, Brake Fluid, DEF, Ethylene Glycol, Fertilizers, Glycerin, Motor Oil, Windshield Washer Fluid

For Use With AUS32, Caustics, Cleaners, DEF, Degreasers, Deionized Water, Solvents

Gear Lube NT

GPM 11 oz. Per Stroke

Grease NT

Height Above Container 13 in

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Includes Telescoping Suction Tube

Includes Bung Adapter Yes

Includes Discharge Hose No

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 1 NPT

Manufacturers Warranty Length 1 yr.

Max. Flow Rate 11 oz per stroke

Max. Fluid Temp. 120 Degrees F

Max. Head 115 ft.

Max. Head - Pumps 6 ft

Max. Head Pressure 50 psi

Max. Liquid Temp. 120 Degrees F

Max. Oil Flow 11 oz per stroke

Max. Outlet Pressure 50 psi

Max. Pressure 50 psi

Max. Temp. 120 Degrees F

Max. Viscosity 50 SUS

Metered No

Min. Operating Temp. 0 Degrees F

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Biodiesel, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formic Acid, Fresh Water, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Outlet Size 3/4 FNPT

Overall Length 35-1/2

Package Quantity 1

pH Range 3.6 to 11.9

Piston Material Polypropylene

Power Source Hand Operated

Pump Body Material Polypropylene

Pump Connection ID 2 in

Pump Connection OD 2 1/8 in

Runs Dry Yes

Seal Material Viton

Self-Priming Yes
