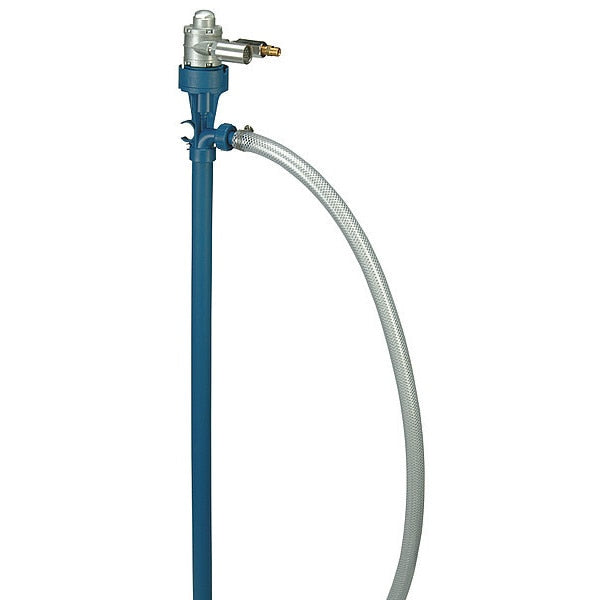

Drum Pump, 1/2 HP, 3/4 In Outlet, 47In OAL

Home / Drum Pump, 1/2 HP, 3/4 In Outlet, 47In OAL

Drum Pump, 1/2 HP, 3/4 In Outlet, 47In OAL

SKU
Brand Finish Thompson
Categories Pumps
Description Air Operated Drum Pump, Max. Air Pressure 40 psi, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 46 7/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 db, Max. Viscosity 300 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No, Includes Spout No
graingerSKU: 5FZU6, mscSKU: , zoro_no: G0658935, mongo_id: 65bbe79b3aaddbd5a90a47a2

Web Price

$873.74 / each

Qty

Product Details

Adapter Material Polypropylene

Adapter Type Optional 2 IPS Thread 107426

Air Inlet Size 1/4 in MNPT

Air Outlet Size 1/4 in

Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet ID Size 3/4

Discharge Tube Outlet OD 1 in

Discharge Tube Outlet OD Size 1

Discharge Tubing Material PVC

Duty Cycle Continuous

Explosion Proof Yes

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water

For Use With Chemicals

Gear Lube NT

GPM 5-15

Grease NT

Height 40

Height Above Container 6 7/8 in

Hose Inside Dia. 3/4 in

Hose Length 60 in

Hose Outside Dia. 1 in

Hose Tube Material PVC

Housing Material Polypropylene

Housing Material - Pumps Polypropylene

Includes Clamp, Hose, Motor, Pump

Includes Bung Adapter No

Includes Discharge Hose Yes

Includes Nozzle No

Includes Spout No

Includes Suction Tube Yes

Inlet Size 1-1/4

Manufacturers Warranty Length 1 yr.

Max. Air Inlet (PSI) 7

Max. Air Pressure 40 psi

Max. Flow GPM 15 gpm

Max. Flow Rate 15 gpm

Max. Fluid Temp. 150 Degrees F

Max. GPM for Oil 5

Max. GPM for Water 15

Max. Head 5 to 17 ft.

Max. Head - Pumps 17 ft

Max. Head Pressure 7.4 psi

Max. Liquid Temp. 150 Degrees F

Max. Oil Flow 5 gpm

Max. Viscosity 300 cps

Metered No

Min. Air Pressure 40 psi

Min. Fluid Temp. 0 Degrees F

Motor HP 1/2 hp

Motor RPM 11,000 RPM

Motor Type Air

Noise Level 78 db

Not Recommended Chemicals Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Outlet Size 3/4 Barb

Overall Length 46 7/8 in

Package Quantity 1

Power Source Air

Pump Connection ID 1 1/4 in

Pump Connection OD 1 1/4 in

Runs Dry No

Seal Material FKM

Self-Priming Yes

Series EF

Suction Tube ID 1 1/4 in

Suction Tube Length 40 in
