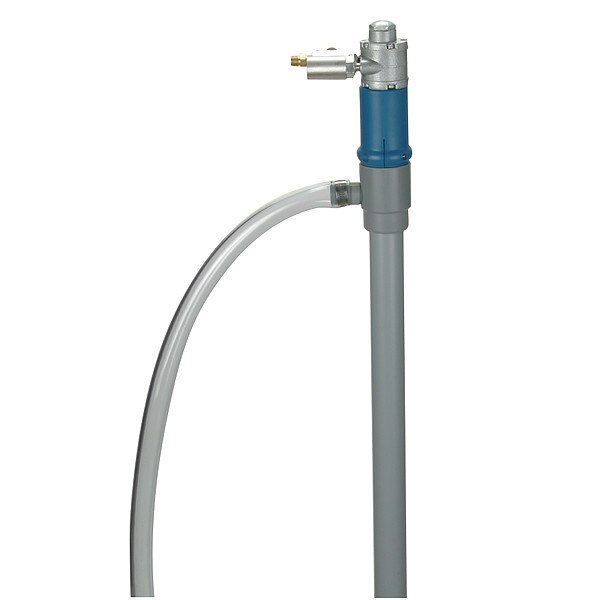

Drum Pump, 1/2HP, Suction Tube 40 L, 16 GPM

Home / Drum Pump, 1/2HP, Suction Tube 40 L, 16 GPM

Drum Pump, 1/2HP, Suction Tube 40 L, 16 GPM

SKU
Brand Finish Thompson
Categories Pumps
Description Air Operated Drum Pump, Max. Air Pressure 80 psi, Suction Tube Material CPVC, Self-Priming Yes, Overall Length 48 1/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Motor Enclosure Air, Noise Level 78 db, Max. Viscosity 1,500 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No
graingerSKU: 3DYJ7, mscSKU: , zoro_no: G3100867, mongo_id: 65bbe7c13aaddbd5a90b2d1b

Web Price

$1,359.99 / each

Qty

Product Details

Adapter Material Polypropylene

Agency Compliance NO

Air Inlet Size 1/4 in MNPT

Air Outlet Size 1/4 in

Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%)

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 1 in

Discharge Tube Outlet ID Size 1

Discharge Tube Outlet OD 1 3/8 in

Discharge Tube Outlet OD Size 1-5/16

Discharge Tubing Material PVC

Duty Cycle Continuous

Explosion Proof Yes

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water

For Use With Chemicals

Gear Lube NT

GPM 16

Grease NT

Height 40

Height Above Container 8 1/16 in

Hose Inside Dia. 1 in

Hose Length 60 in

Hose Outside Dia. 1 3/8 in

Hose Tube Material PVC

Housing Material CPVC

Housing Material - Pumps CPVC

Includes Hose and Clamp, Motor

Includes Bung Adapter No

Includes Discharge Hose Yes

Includes Nozzle No

Includes Spout No

Includes Suction Tube Yes

Inlet Size 1.6

Max. Air Inlet (PSI) 13

Max. Air Pressure 80 psi

Max. Flow Rate 16 gpm

Max. Fluid Temp. 150 Degrees F

Max. GPM for Oil 11

Max. GPM for Water 16

Max. Head 30 ft.

Max. Head - Pumps 30 ft

Max. Head Pressure 13 psi

Max. Liquid Temp. 150 Degrees F

Max. Oil Flow 11 gpm

Max. Viscosity 1,500 cps

Metered No

Min. Air Pressure 80 psi

Min. Fluid Temp. 34 Degrees F

Motor Enclosure Air

Motor HP 1/2 hp

Motor RPM 9,000 RPM

Motor Type Air

Noise Level 78 db

Not Recommended Chemicals Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (Concentrated Solution), Paint Thinner, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Outlet Size 1 Barb

Overall Length 48 1/8 in

Package Quantity 1

Power Source Air

Pump Connection ID 1 5/8 in

Pump Connection OD 1 5/8 in

Runs Dry No

Seal Material PTFE

Self-Priming Yes

Series TT

Suction Tube ID 1 5/8 in

Suction Tube Length 40 in
