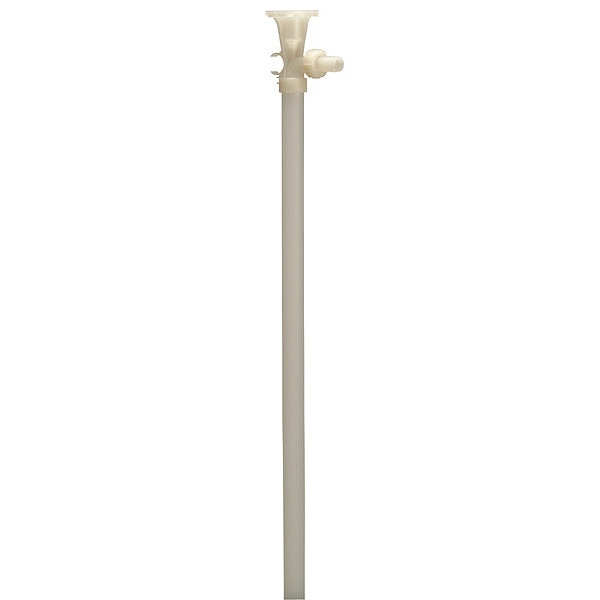

Drum Pump Tube, Polypropylene / PVDF

Home / Drum Pump Tube, Polypropylene / PVDF

Drum Pump Tube, Polypropylene / PVDF

SKU
Brand Finish Thompson
Categories Pumps
Description Drum Pump Tube, Suction Tube Length 40 in, Pump Package Type Drum Pump Tube, Suction Tube Material Polypropylene, Suction Tube ID 1 1/4 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 3/4 in, Discharge Tube Outlet OD 1 in, Discharge Connection Type Hose Barb, Overall Length 43 1/4 in, For Container Size 30 gal, 55 gal, For Container Type Drum, Pail, Max. Flow Rate 17 gpm, Max. Viscosity 300 CPS, Min. Fluid Temp. 0 Degrees F, Max. Fluid Temp. 160 Degrees F, Max. Head 20 ft
graingerSKU: 5FZV0, mscSKU: , zoro_no: G2679853, mongo_id: 65bbe7ba9a749db8227532be

Web Price

$416.24 / each

Qty

Product Details

Adapter Material Polypropylene

Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Antifreeze (Coolant), Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate (10%), Ammonium Hydroxide, Sodium Hypochlorite/Bleach (to 20%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene (50%), Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Connection Type Hose Barb

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 1 in

Food Grade No

For Container Size 30 gal, 55 gal

For Container Type Drum, Pail

For Media Type Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Antifreeze, Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate, Ammonium Hydroxide, Bleach, Water, Sodium Bisulfate, Sodium Bisulfite, Trichlorethylene, Automatic Transmission Fluid, Fertilizers, Fungicides, Herbicides

For Use With EF

Gear Lube NT

Grease NT

Height 40

Includes Pump Only

Inlet Size 1 1/4 in

Manufacturers Warranty Length 1 yr.

Max. Flow Rate 17 gpm

Max. Fluid Temp. 160 Degrees F

Max. Head 20 ft

Max. Head Pressure 8.6 psi

Max. Liquid Temp. 160 Degrees F

Max. Viscosity 300 CPS

Min. Fluid Temp. 0 Degrees F

Not Recommended Chemicals Acetic Acid (Glacial), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (Concentrated Solution), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Glycerin, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Hydrazine, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Potassium Hydroxide (50%), Lacquer Thinners, Toluene, Xylene, DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid

Outlet Size 3/4 in Barb

Overall Length 43 1/4 in

Package Quantity 1

Runs Dry No

Seal Material FKM

Self-Priming Yes

Series EF

Suction Tube ID 1 1/4 in

Suction Tube Length 40 in

Suction Tube Material Polypropylene

Suction Tube OD 1 3/16 in

Wetted Materials Polypropylene, PTFE, PVDF, FKM, Alloy 625
