Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

SKU
Brand Fluke
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.4 Percent, Basic DC Voltage Accuracy +/-0.025 Percent, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 50,000
graingerSKU: 1EVC3, mscSKU: 79402947, zoro_no: G0508496, mongo_id: 65bbea1722d7a989a99958c1

Web Price

$1,044.42 / each

Qty

Product Details

AC Current Measurement Resolution 500 uA

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution 50 V

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-0.6%

Basic AC Voltage Accuracy +/-0.4%

Basic DC Accuracy +/-0.025% of Reading +2 Digits

Basic DC Current Accuracy +/-0.05%

Basic DC Voltage Accuracy +/-0.025%

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size AA

Battery Type AA Alkaline

Bluetooth Compatible Yes

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy 1.00%

Capacitance Measurement Resolution 1 nF

Capacitance Range 1 nF to 100 mF

Capacity 2.24 Ah

Computer Interface Connection Type USB

Country of Origin (subject to change) United States

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

DC Current Measurement Resolution 500 uA

DC Voltage Measurement Resolution 50 V

Depth 2.4 in

Diode Test Yes

Display Backlit Digital - 1/4 VGA Dot Matrix

Display Type Backlit Digital - 1/4 VGA Dot Matrix

Dustproof No

Duty Cycle Yes

Elapse Time Clock Yes

Frequency Measurement Accuracy 0.005 %

Frequency Measurement Resolution 99.999 Hz

Fuse Access Yes

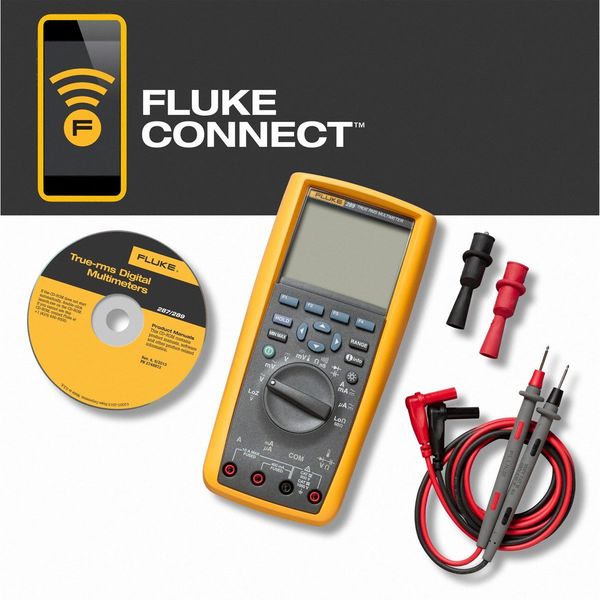

Includes (1 Pair) TL71 Test Leads, (6) AA Batteries (Installed), AC175 Alligator Clips, Quick Reference Guide

Instrument Counts 50,000

Instrument Frequency Counter Range 0.01 Hz to 1 MHz

Instrument Safety Rating CAT III 1000V, CAT IV 600V

Interface USB

Intrinsically Safe No

Manufacturers Warranty Length Limited Lifetime

Max. AC Amps 10

Max. AC Volts 1,000

Max. DC Amps 10

Max. DC Volts 1,000

Max. Ohms 500 megohm

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 100 mF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 1 MHz

Maximum Operating Temperature 131 Degrees F

Maximum Resistance Measurement 500 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 1,994 Degrees F

Min-Max-Avg Button Included Yes

Min./Max. Memory yes

Minimum AC Current Measurement 0 uA

Minimum AC Voltage Measurement 0 V

Minimum Capacitance Measurement 1 nF

Minimum DC Current Measurement 0 mA

Minimum DC Voltage Measurement 0 V

Minimum Frequency Measurement 0.01 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Resistance Measurement 50 ohm

Minimum Storage Temperature -40 Degrees F

Minimum Temperature Measurement -328 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Bluetooth-Compatible, Data Logging

Multimeter Style Full Size - Advanced Features

Multiple On-Screen Displays Yes

Overall Height 8.8 in

Overall Width 4 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Low Input Impedance, Resistance, Temperature (K)

Peak Hold Yes

Promotion Restriction Not eligible for promotion

Pulse Width Yes

Removable Screen No

Resistance Measurement Accuracy +/-0.05%

Resistance Measurement Resolution 50 ohm

Series FLUKE (R) Fluke-289

Software Included No

Special Features Low Impedance Voltage, Low Ohms and Low Pass Filter for Accurate Voltage and Frequency Measurements on Adjustable Speed Motor Drives and Electrically Noisy Equipment

Standards CE, CSA, UL

Style Full Size

Temp. Range -328 Degrees to 1994 Degrees F

Temperature Measurement Accuracy 1.00 %

Thermal Imaging No

Time of Day Clock Yes

True RMS Bandwidth 100 kHz

Waterproof No

Weight 28 oz
