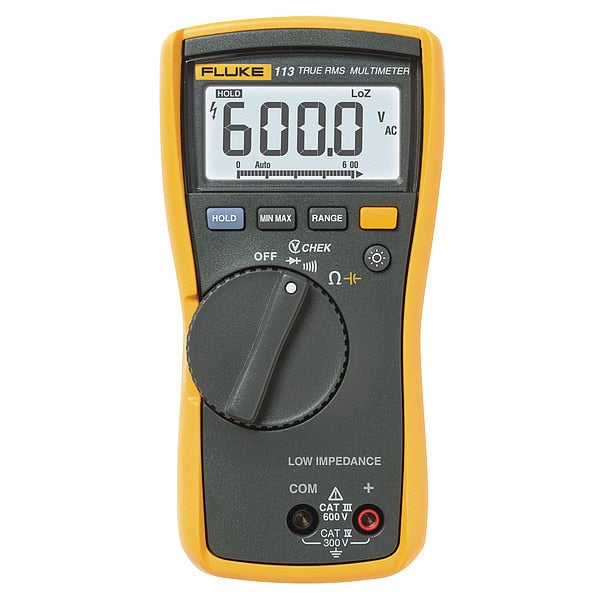

Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 10 Max. AC Amps, 10 Max. DC Amps

SKU
Brand Fluke
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 2.0 Percent + 3, Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy Not Applicable, Instrument Safety Rating CAT III 600V, CAT IV 300V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000, Special Features Integral Holster with Probe Holders, Vchek(Tm) Low Impedance Measurement Function to Simultaneously Test for Voltage or Continuity
graingerSKU: 2WTK1, mscSKU: , zoro_no: G8300171, mongo_id: 65bbe82122d7a989a98db229

Web Price

$363.99 / each

Qty

Product Details

AC Current Measurement Resolution Not Applicable

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution Not Applicable

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy Not Applicable

Basic AC Voltage Accuracy 2.0% + 3

Basic DC Accuracy +/-0.50% of Reading +2 Digits

Basic DC Current Accuracy Not Applicable

Basic DC Voltage Accuracy +/-0.50% + 2 Digits

Battery Access Yes

Battery Chemistry Alkaline

Battery Size 9V

Battery Type 9V Alkaline

Battery Voltage 9V

Bluetooth Compatible No

Calibration Certificate Included

Calibration Certificate Included Yes

Capacitance Measurement Accuracy 1.9% + 2

Capacitance Measurement Resolution Not Applicable

Capacitance Range 9999 uF

Country of Origin (subject to change) Malaysia

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

DC Current Measurement Resolution Not Applicable

DC Voltage Measurement Resolution Not Applicable

Depth 1.8 in

Diode Test Yes

Display Backlit LCD

Display Type Backlit LCD

Dustproof No

Duty Cycle No

Frequency Measurement Accuracy Not Applicable

Frequency Measurement Resolution 45 Hz

Fuse Access No

Includes Integrated Holster

Instrument Counts 6,000

Instrument Safety Rating CAT III 600V, CAT IV 300V

Intrinsically Safe No

Manufacturers Warranty Length 3 yr

Max. AC Amps 10

Max. AC Volts 600

Max. DC Amps 10

Max. DC Volts 600

Max. Ohms 60 kilohm

Maximum AC Current Measurement Not Applicable

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement 9,999 uF

Maximum DC Current Measurement Not Applicable

Maximum DC Voltage Measurement 600 V

Maximum Frequency Measurement Not Applicable

Maximum Operating Temperature 122 Degrees F

Maximum Resistance Measurement 60 kiloohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 122 Degrees F

Min-Max-Avg Button Included Yes

Min./Max. Memory yes

Minimum AC Current Measurement Not Applicable

Minimum AC Voltage Measurement 0 V

Minimum Capacitance Measurement 9,999 uF

Minimum DC Current Measurement Not Applicable

Minimum DC Voltage Measurement 0 V

Minimum Frequency Measurement Not Applicable

Minimum Operating Temperature 14 Degrees F

Minimum Storage Temperature -22 Degrees F

Minimum Temperature Measurement 14 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Data Logging

Multimeter Style Compact - Basic Features

NIST Certification By Fluke

NIST Certification By Manufacturer Fluke

Overall Height 6.6 in

Overall Width 3.4 in

Package Quantity 1

Parameters Measured AC Voltage, Capacitance, DC Voltage, Resistance

Peak Hold No

Promotion Restriction Not eligible for promotion

Pulse Width No

Removable Screen No

Resistance Measurement Accuracy +/-0.9%

Resistance Measurement Resolution Not Applicable

Series FLUKE (R) Fluke-113

Software Included No

Special Features Integral Holster with Probe Holders, Vchek(Tm) Low Impedance Measurement Function to Simultaneously Test for Voltage or Continuity

Standards ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, EMC EN61326-1, 600 V, Pollution Degree 2, UL 61010-1 (2004) and IEC/EN61010-1 2nd Edition for measurement Category III

Style Compact

Temp. Range 14 Degrees to 122 Degrees F

Temperature Measurement Accuracy Not Applicable

Thermal Imaging No

Waterproof No

Weight 404 g
