Home / Industrial Digital Multimeter, 1000V, 10A

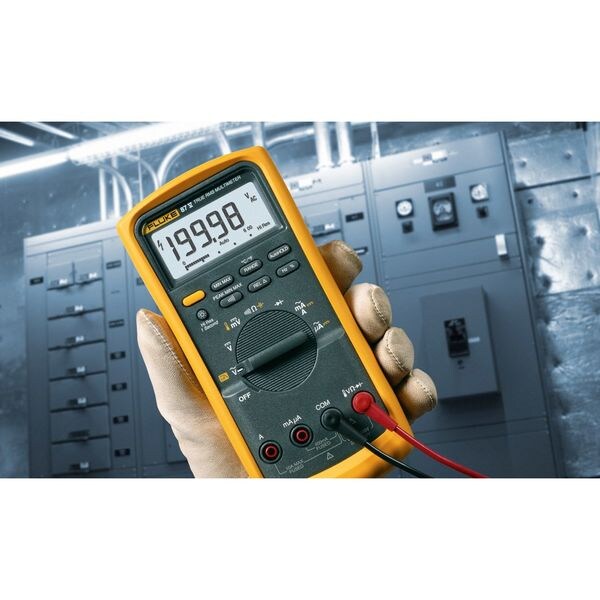

Industrial Digital Multimeter, 1000V, 10A

SKU
Brand Fluke
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(0.7 Percent + 2), Basic DC Voltage Accuracy +/-0.05 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/-(0.2 Percent + 2), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
graingerSKU: 4JNV9, mscSKU: , zoro_no: G1477427, mongo_id: 65bbe8789a749db822793ee4

Web Price

$719.99 / each

Qty

Product Details

AC Current Measurement Resolution Not Applicable

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution Not Applicable

Additional Components Current Clamp Probe, Temperature Probe

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-(1.0% + 2)

Basic AC Voltage Accuracy +/-(0.7% + 2)

Basic DC Accuracy +/-0.05% of Reading + 1 Digit

Basic DC Current Accuracy +/-(0.2% + 2)

Basic DC Voltage Accuracy +/-0.05% + 1 Digit

Battery Access Yes

Battery Chemistry Alkaline

Battery Size 9V

Battery Type 9V Alkaline

Bluetooth Compatible No

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy +/-(1% + 2)

Capacitance Measurement Resolution Not Applicable

Capacitance Range 10 pF to 9999 uF

Computer Interface Connection Type None

Country of Origin (subject to change) United States

Current Leakage Testing No

Data Hold Yes

Data Logging Yes

DC Current Measurement Resolution Not Applicable

DC Voltage Measurement Resolution Not Applicable

Depth 2 in

Diode Test Yes

Display Large Backlit LCD

Display Type Backlit LCD

Dustproof No

Duty Cycle Yes

Features Data Logging

Frequency Measurement Accuracy +/-(0.005% + 1)

Frequency Measurement Resolution 5 Hz

Includes Alligator Clips, Current Clamp, Test Leads, Thermocouple Bead Probe

Instrument Counts 6,000

Instrument Safety Rating CAT IV 600V

Intrinsically Safe No

Manufacturers Warranty Length No Warranty (Service Available)

Max. AC Amps 10

Max. AC Volts 1,000

Max. DC Amps 10

Max. DC Volts 1,000

Max. Ohms 50 megohm

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 1,000 V

Maximum Capacitance Measurement 9,999 uF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 1,000 V

Maximum Frequency Measurement 200 kHz

Maximum Operating Temperature 131 Degrees F

Maximum Resistance Measurement 50 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 2,462 Degrees F

Min./Max. Memory Yes

Minimum AC Current Measurement 0 A

Minimum AC Voltage Measurement 0 V

Minimum Capacitance Measurement 10 pF

Minimum DC Current Measurement 0 A

Minimum DC Voltage Measurement 0 V

Minimum Frequency Measurement Not Applicable

Minimum Operating Temperature -4 Degrees F

Minimum Storage Temperature -40 Degrees F

Minimum Temperature Measurement -328 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Data Logging

Multimeter Style Full Size

Overall Height 7.9 in

Overall Width 3.9 in

Package Quantity 1

Parameters Measured AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Peak Hold Yes

Promotion Restriction Not eligible for promotion

Removable Screen No

Resistance Measurement Accuracy +/-0.2%

Resistance Measurement Resolution Not Applicable

Safety Rating CAT III 1000V; CAT I 600V

Software Included No

Special Features Accurate Frequency and Voltage Measurements, Built-In Thermometer, Display Icons, Input Jacks, Latest Electrical Safety Compliance, Optional Magnetic Hanger, Rotary Switch, Tough Design for Industrial Environments

Standards CSA, EN61010-1, TV, UL, VDE

Style Full Size

Temp. Range -328 Degrees to 2462 Degrees F

Temperature Measurement Accuracy +/-2.00%

Thermal Imaging No

Waterproof No

Weight 355 g
