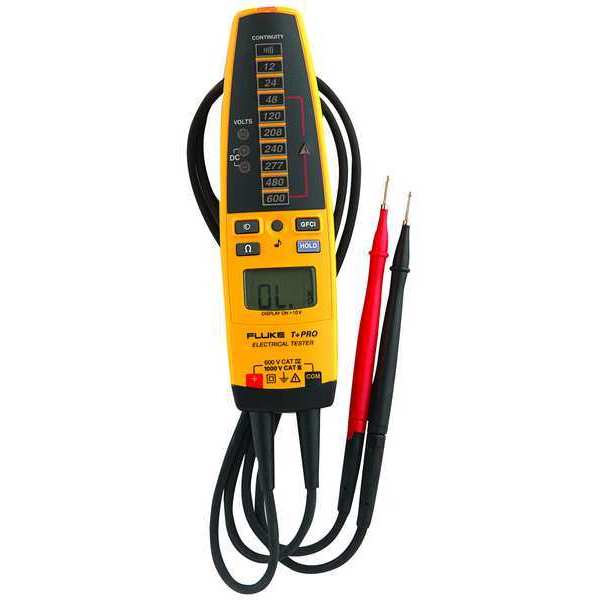

Voltage Tester, 600VAC, 600VDC

SKU
Brand Fluke
Categories
Description Voltage Tester, Alert Type Digital Display, Light, Sound, Vibration, Built-In Flashlight Yes, CAT Safety Rating CAT III 1000V, CAT IV 600V, Cable Length 24 in, Display Type Digital, Includes Test Lead Wrap, TP2 Test Probes, Maximum AC Voltage Measured 600 V, Maximum DC Voltage Measured 600 V, Non-Contact No, Test Connection Type Probe Tip, Testing Functions GFCI, Features Detect Live Voltage, See Voltage Level, Even with Dead Batteries, Power Source Battery, Tester Type Voltage Detector/Tester
graingerSKU: 1CWL2, mscSKU: , zoro_no: G0869705, mongo_id: 65bbe5bc3aaddbd5a9fe2e8a

Web Price

$207.49 / each

Qty

Product Details

AC Voltage Accuracy +/-3.00% + 2 digits

AC Voltage Range 10.2 to 600

Alert Type Audible, Visual

Audible Continuity Yes

Basic DC Accuracy +/-2% of Reading +2 Digits

Battery Chemistry Alkaline

Battery Size AAA

Battery Type AAA

Built-In Flashlight Yes

Cable Length 24 in

Calibration Frequency 45 to 66 Hz

CAT Safety Rating CAT III 1000V, CAT IV 600V

Continuity Confirmation 9.99 kiloohm

Country of Origin (subject to change) China

Data Hold Yes

DC Voltage Accuracy +/-2.00% +2 digits

DC Voltage Range 10.2 to 600

Display Backlit LCD with Discrete LED

Display Screen Type LCD

Display Type Digital

Flashlight Yes

For Phase Three

GFCI Test Yes

Includes Test Lead Wrap, TP2 Test Probes, User Manual

Manufacturer Warranty Length 2 yr

Manufacturers Warranty Length 2 yr

Maximum Operating Temperature 131 Degrees F

Maximum AC Voltage Measured 600 V

Maximum Current Measured 9 mA

Maximum DC Voltage Measured 600 V

Maximum Operating Temperature 131 Degrees F

Maximum Resistance Measured 9.99 kiloohm

Minimum AC Voltage Measured 10.2 V

Minimum Current Measured 6 mA

Minimum DC Voltage Measured 10.2 V

Minimum Operating Temperature 14 Degrees F

Minimum Resistance Measured 0.01 kiloohm

Non-Contact No

Number of Batteries Required 2

Package Quantity 1

Phase Rotation Yes

Power Source Battery

Product Type_Filter Fluke-T+Pro

Promotion Restriction Not eligible for promotion

Resistance 9.99K ohm

Safety Rating CAT III 1000V, CAT IV 600V

Special Features (3) Forms of AC/DC Voltage Indication: Light, Sound and Vibration for Added User Protection and Convenience, Detect Live Voltage Even When The Batteries are Dead, Extra Heavy Duty, Replaceable Test Leads for More Flexibility and Durability, Continuity Beeper, On/Off Switchable Beeper, Selectable According to Your Environment, Replaceable Test Probes for Added Flexibility and Convenience, Convenient Probe Storage On The Back, Probe Holder for Easier Testing, Hazardous Voltage Warning Light for Added User Protection, Auto Off Saves Battery Power

Standards CAN/CSA-C22.2 No. 61010-1 Second Edition, Compliance to NFPA 70E, IEC 61010 - 1 to 1000V, ISA-82.02.01 (IEC 61010-1 Mod) Second Edition

Test Connection Type Probe Tip

Tester Type Voltage Detector/Tester

Testing Functions GFCI

Tool Height 1.3 in

Tool Length 7.6 in

Tool Width 2.2 in

Vibrates When Voltage Present Yes
