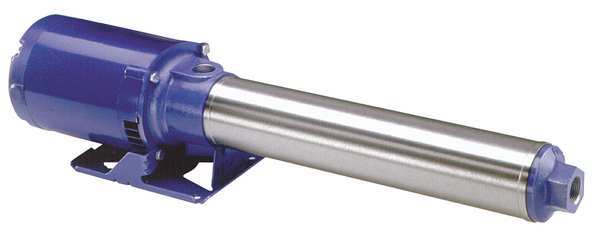

Multi-Stage Booster Pump, 1/3 hp, 120/240V AC, 1 Phase, 1 in NPT Inlet

Home / Multi-Stage Booster Pump, 1/3 hp, 120/240V AC, 1 Phase, 1 in NPT Inlet Size, 7 Stage

Multi-Stage Booster Pump, 1/3 hp, 120/240V AC, 1 Phase, 1 in NPT Inlet Size, 7 Stage

SKU
Brand Goulds Water Technology
Categories Pumps
Description Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Motor Enclosure Open Dripproof, Horsepower 1/3 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 psi 9.5 gpm, Flow Rate @ 20 psi 8.8 gpm, Flow Rate @ 30 psi 8.4 gpm, Flow Rate @ 40 psi 7.8 gpm, Flow Rate @ 50 psi 7 gpm, Flow Rate @ 60 psi 6.1 gpm, Flow Rate @ 70 psi 5.1 gpm, Flow Rate @ 80 psi 4 gpm, Flow Rate @ 90 psi 2.8 gpm, Shut Off Pressure (Maximum) 75 psi, Compatible Intake Pipe Size 1 in

Web Price

$2,406.24 / each

Qty

Product Details

Agency Compliance CSA/UL/CE

Amps 6.8/3.8-3.4 A

Bearing Type Ball

Booster Pump Type Multi-Stage Booster Pump

Case Pressure (Maximum) 260 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Feet of Head (Minimum) 10 ft of head

Flow Rate @ 10 psi 9.5 gpm

Flow Rate @ 15 psi 9.2 gpm

Flow Rate @ 20 psi 8.8 gpm

Flow Rate @ 30 psi 8.4 gpm

Flow Rate @ 40 psi 7.8 gpm

Flow Rate @ 50 psi 7 gpm

Flow Rate @ 60 psi 6.1 gpm

Flow Rate @ 70 psi 5.1 gpm

Flow Rate @ 80 psi 4 gpm

Flow Rate @ 90 psi 2.8 gpm

For Use With Potable Systems No

For Use With Systems Non-Potable

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 9.5

GPM @ 20 PSI 9

GPM @ 40 PSI 7.5

GPM @ 60 PSI 6

GPM @ 80 PSI 4

Height 5 3/4 in

Horsepower 1/3 hp

Housing Material Stainless Steel

Housing Material - Pumps Stainless Steel

HP - Pumps 1/3 hp

HP_ 1/3

Hz_ 60

Impeller Design Closed

Impeller Material Glass Filled Polycarbonate

Impeller Type Closed

Includes Manual

Inlet 1 FNPT

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 21 11/16 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 375 psi

Max. Liquid Temp. 160 Degrees F

Max. Pressure 75 psi

Max. Pressure - Pumps 75 psi

Maximum Feet of Head 220 ft of head

Maximum Flow Rate 8 gpm

Maximum Media Temperature 160 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 1 gpm

Motor Ambient Temp. Rating 40 Degrees C

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Ambient Temperature (Minimum) 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J NEMA

Motor RPM 3,450 RPM

Motor Type Capacitor-Start

Mounting Orientation Horizontal

Nameplate Voltage 115/230V AC

Nominal Voltage 115/230V AC

Number of Stages 7

Number of Stages - Pumps 7

Outlet 1 FNPT

Outlet Size - Pumps 1 in NPT

Overall Height 5.75 in

Overall Length 21.69 in

Overall Width 6.06 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pump Housing Material Stainless Steel

Pump Mounting Position Horizontal

Pumping Application Booster Service, Evaporative Cooling Systems/Misters, Filtration, General Purpose Pumping, HVAC, Reverse Osmosis, Spray Systems, Water Circulation

Seal Material Carbon, Silicon Carbide, Viton

Series GB

Series Family 5GB

Shut Off Pressure (Maximum) 75 psi

Stages 7

Standards CAN 22.2, CSA Certified, UL778

Voltage 115-230

Voltage - Pumps 120/240V AC

Wetted Material Carbon, Silicon Carbide, Stainless Steel, Viton

Wetted Materials Carbon, Engineered Composite, Silcon Carbide, Stainless Steel, Viton

Width 6 1/16 in
