Multi-Stage Booster Pump, 3 hp, 208 to 240V AC, 1 Phase, 1 in NPT Inle

Home / Multi-Stage Booster Pump, 3 hp, 208 to 240V AC, 1 Phase, 1 in NPT Inlet Size, 13 Stage

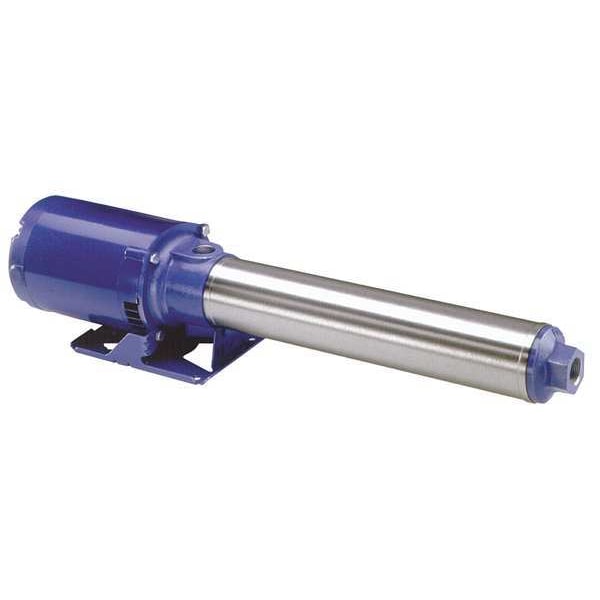

Multi-Stage Booster Pump, 3 hp, 208 to 240V AC, 1 Phase, 1 in NPT Inlet Size, 13 Stage

SKU
Brand Goulds Water Technology
Categories Pumps
Description Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 3 hp, Nameplate Voltage 208-230V AC, Flow Rate @ 10 psi 51.5 gpm, Flow Rate @ 20 psi 51 gpm, Flow Rate @ 40 psi 47.5 gpm, Flow Rate @ 50 psi 48 gpm, Flow Rate @ 60 psi 45 gpm, Flow Rate @ 70 psi 45 gpm, Flow Rate @ 80 psi 40 gpm, Flow Rate @ 90 psi 40 gpm, Flow Rate @ 100 psi 39 gpm, Flow Rate @ 120 psi 32 gpm, Shut Off Pressure (Maximum) 75 psi, Compatible Intake Pipe Size 1 in
graingerSKU: , mscSKU: , zoro_no: G7185017, mongo_id: 65bbe8729a749db822790def

Web Price

$3,858.74 / each

Qty

Product Details

Agency Compliance CSA/UL/CE

Amps 13.5/12.9 A

Bearing Type Ball

Booster Pump Type Multi-Stage Booster Pump

Case Pressure (Maximum) 249 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Feet of Head (Minimum) 10 ft of head

Flow Rate @ 10 psi 51.5 gpm

Flow Rate @ 100 psi 39 gpm

Flow Rate @ 120 psi 32 gpm

Flow Rate @ 140 psi 26 gpm

Flow Rate @ 160 psi 13 gpm

Flow Rate @ 20 psi 51 gpm

Flow Rate @ 40 psi 47.5 gpm

Flow Rate @ 50 psi 48 gpm

Flow Rate @ 60 psi 45 gpm

Flow Rate @ 70 psi 45 gpm

Flow Rate @ 80 psi 40 gpm

Flow Rate @ 90 psi 40 gpm

For Use With Potable Systems No

For Use With Systems Non-Potable

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 51.5

GPM @ 100 PSI 37

GPM @ 120 PSI 32

GPM @ 140 PSI 23

GPM @ 160 PSI 13

GPM @ 20 PSI 51

GPM @ 40 PSI 47.5

GPM @ 60 PSI 45

GPM @ 80 PSI 40

Height 5 3/4 in

Horsepower 3 hp

Housing Material Cast iron

Housing Material - Pumps Cast Iron

HP - Pumps 3 hp

HP_ 3

Hz_ 60

Impeller Design Closed

Impeller Material Glass Filled Polycarbonate

Impeller Type Closed

Includes Manual

Inlet 1 FNPT

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 36 1/2 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 375 psi

Max. Liquid Temp. 160 Degrees F

Max. Pressure 75 psi

Max. Pressure - Pumps 75 psi

Maximum Feet of Head 400 ft of head

Maximum Flow Rate 43 gpm

Maximum Media Temperature 160 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 10 gpm

Motor Ambient Temp. Rating 40 Degrees C

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Ambient Temperature (Minimum) 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J NEMA

Motor RPM 3,450 RPM

Motor Type Capacitor-Start

Mounting Orientation Horizontal

Nameplate Voltage 208-230V AC

Nominal Voltage 208-230V AC

Number of Stages 13

Number of Stages - Pumps 13

Outlet 1 FNPT

Outlet Size - Pumps 1 in NPT

Overall Height 5.75 in

Overall Length 36.5 in

Overall Width 6.06 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pump Housing Material Cast Iron

Pump Mounting Position Horizontal

Pumping Application Booster Service, Evaporative Cooling Systems/Misters, Filtration, General Purpose Pumping, HVAC, Reverse Osmosis, Spray Systems, Water Circulation

Seal Material Buna-N, Carbon, Ceramic

Series GB

Series Family 33GB

Shut Off Pressure (Maximum) 75 psi

Stages 13

Standards CAN 22.2, CSA Certified, UL778

Voltage 208-230

Voltage - Pumps 208 to 240V AC

Wetted Material Buna, Carbon, Cast Iron, Ceramic, Stainless Steel

Wetted Materials Buna, Carbon, Cast Iron, Ceramic, Engineered Composite, Stainless Steel

Width 6 1/16 in
