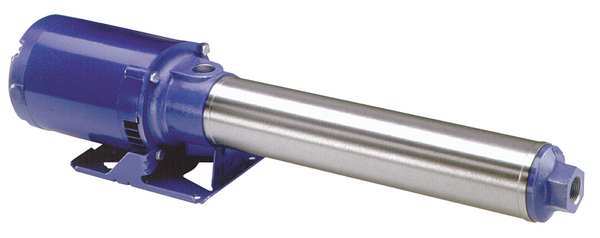

Multi-Stage Booster Pump, 3/4 hp, 240/460V AC, 3 Phase, 1 in NPT Inlet Size, 13 Stage

SKU
Brand Goulds Water Technology
Categories Pumps
Description Booster Pump, Phase Three, Pump Housing Material Stainless Steel, Motor Enclosure Open Dripproof, Horsepower 3/4 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 10 psi 14.6 gpm, Flow Rate @ 20 psi 14.4 gpm, Flow Rate @ 30 psi 14 gpm, Flow Rate @ 40 psi 13.5 gpm, Flow Rate @ 50 psi 13.1 gpm, Flow Rate @ 60 psi 12.8 gpm, Flow Rate @ 70 psi 12.2 gpm, Flow Rate @ 80 psi 11.8 gpm, Flow Rate @ 90 psi 11.2 gpm, Flow Rate @ 100 psi 10.8 gpm, Flow Rate @ 120 psi 9.2 gpm, Shut Off Pressure (Maximum) 75 psi

Web Price

$2,944.99 / each

Qty

Product Details

Agency Compliance CSA/UL/CE

Amps 12.8/6.4 A

Bearing Type Ball

Booster Pump Type Multi-Stage Booster Pump

Case Pressure (Maximum) 216 psi

Compatible Discharge Pipe Size 1 in

Compatible Intake Pipe Size 1 in

Compatible with Media Type Water

Country of Origin (subject to change) United States

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Feet of Head (Minimum) 330 ft of head

Flow Rate @ 10 psi 14.6 gpm

Flow Rate @ 100 psi 10.8 gpm

Flow Rate @ 120 psi 9.2 gpm

Flow Rate @ 140 psi 7.6 gpm

Flow Rate @ 15 psi 14.5 gpm

Flow Rate @ 160 psi 4 gpm

Flow Rate @ 180 psi 1.1 gpm

Flow Rate @ 20 psi 14.4 gpm

Flow Rate @ 30 psi 14 gpm

Flow Rate @ 40 psi 13.5 gpm

Flow Rate @ 50 psi 13.1 gpm

Flow Rate @ 60 psi 12.8 gpm

Flow Rate @ 70 psi 12.2 gpm

Flow Rate @ 80 psi 11.8 gpm

Flow Rate @ 90 psi 11.2 gpm

For Use With Potable Systems No

For Use With Systems Non-Potable

Frame 56J

Frequency 60 Hz

GPM @ 10 PSI 14

GPM @ 100 PSI 11

GPM @ 120 PSI 9.5

GPM @ 140 PSI 7

GPM @ 160 PSI 4

GPM @ 20 PSI 14.5

GPM @ 40 PSI 14

GPM @ 60 PSI 13

GPM @ 80 PSI 12.5

Height 5 3/4 in

Horsepower 3/4 hp

Housing Material Stainless Steel

Housing Material - Pumps Stainless Steel

HP - Pumps 3/4 hp

HP_ 3/4

Hz_ 60

Impeller Design Closed

Impeller Material Glass Filled Polycarbonate

Impeller Type Closed

Includes Manual

Inlet 1 FNPT

Inlet Size - Pumps 1 in NPT

Intake and Discharge Size 1 in , 1 in

Intake Size 1 in

Intake Type NPT

Length 30 1/8 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. Case Pressure 300 psi

Max. Liquid Temp. 160 Degrees F

Max. Pressure 75 psi

Max. Pressure - Pumps 75 psi

Maximum Feet of Head 410 ft of head

Maximum Flow Rate 15 gpm

Maximum Media Temperature 160 Degrees F

Maximum RPM 3,500 RPM

Minimum Flow Rate 1 gpm

Motor Ambient Temp. Rating 40 Degrees C

Motor Ambient Temperature (Maximum) 104 Degrees F

Motor Ambient Temperature (Minimum) 40 Degrees F

Motor Enclosure Open Dripproof (ODP)

Motor Enclosure - Pumps Open Dripproof

Motor Enclosure Type ODP

Motor Frame Designation 56J NEMA

Motor RPM 3,450 RPM

Motor Type Capacitor-Start

Mounting Orientation Horizontal

Nameplate Voltage 230/460V AC

Nominal Voltage 230/460V AC

Number of Stages 13

Number of Stages - Pumps 13

Outlet 1 FNPT

Outlet Size - Pumps 1 in NPT

Overall Height 5.75 in

Overall Length 30.13 in

Overall Width 6.06 in

Package Quantity 1

Phase Three

Phase - Pumps 3

Pump Housing Material Stainless Steel

Pump Mounting Position Horizontal

Pumping Application Booster Service, Evaporative Cooling Systems/Misters, Filtration, General Purpose Pumping, HVAC, Reverse Osmosis, Spray Systems, Water Circulation

Seal Material Carbon, Silicon Carbide, Viton

Series GB

Series Family 7GB

Shut Off Pressure (Maximum) 75 psi

Stages 13

Standards CAN 22.2, CSA Certified, UL778

Voltage 230-460

Voltage - Pumps 240/460V AC

Wetted Material Carbon, Silicon Carbide, Stainless Steel, Viton

Wetted Materials Carbon, Engineered Composite, Silcon Carbide, Stainless Steel, Viton

Width 6 1/16 in
