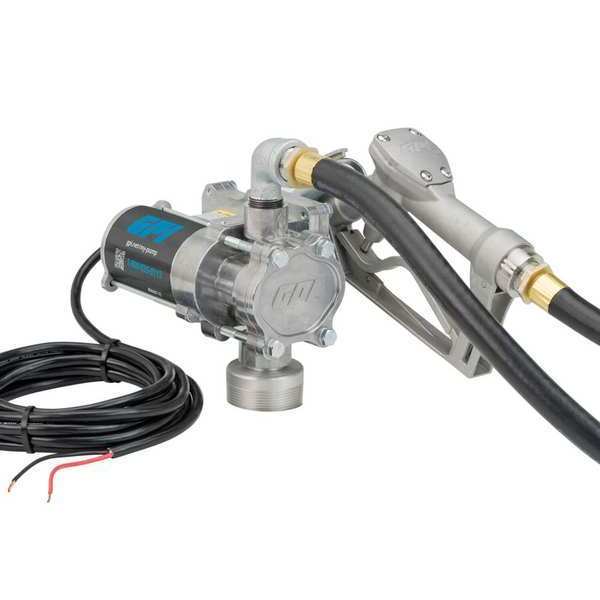

Fuel Transfer Pump, 12VDC, 8 GPM, 1/10 HP

Home / Fuel Transfer Pump, 12VDC, 8 GPM, 1/10 HP

Fuel Transfer Pump, 12VDC, 8 GPM, 1/10 HP

SKU
Brand Gpi
Categories Pumps
Description Fuel Transfer Pump, Max. Outlet Pressure 15 psi, For Use With Diesel, Gasoline, Kerosene, E15, Rated Voltage 12V DC, Suction Tube OD 1 in, Hose Length 10 ft, Suction Tube Length 40 in, Cord Length 15 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Diesel, Gasoline, Kerosene, Discharge Connection Type FNPT

Web Price

$474.99 / each

Qty

Product Details

Adapter Connection Type MNPT

Adapter Material Aluminum

Agency Compliance Class I, Division 2, Group D, cULus

Bearing Type Sleeve

Bung Connection Dia. 2 in

Bypass Valve Yes

Compatible Chemicals Diesel, Gasoline, Kerosene

Compatible Fluids Diesel, Gasoline, Kerosene, E15

Cord Length 15 ft

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Connection Type FNPT

Duty Cycle 15 Minutes On/30 Minutes Off

Explosion Proof Yes

Features Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Explosion Proof Motor, Thermal Overload Protection

Filter Included Not Applicable

Food Grade No

For Container Size 5 gal, 55 gal

For Media Type Diesel, Gasoline, Kerosene

For Use With Diesel, Gasoline, Kerosene, E15

Frequency (Hz) 60 Hz

Full Load Amps 20.0 A

GPM 8 gpm

Height Above Container 10 in

Hose Cover Material Nitrile

Hose Dia. 5/8 in

Hose Length 10 ft

Hose Outside Dia. 5/8 in

Hose Tube Material Nitrile

Housing Finish Powder Coated

Housing Material Cast Aluminum

Housing Material - Pumps Aluminum

HP_ 1/10

Includes Dispensing Hose with Static Wire, EZ-8 8 gpm Pump with Spin Collar, Factory-Installed Power Cord, Fuse Assembly, Manual Unleaded Nozzle, Street Elbow, Tank Adapter, Telescoping Suction Pipe

Includes Bung Adapter Yes

Includes Discharge Hose Yes

Includes Nozzle Yes

Includes Spout No

Includes Suction Tube Yes

Inlet Size 1 in NPT

Manufacturers Warranty Length 2 yr

Max. Flow Rate 8 gpm

Max. Fluid Temp. 125 Degrees F

Max. Head - Pumps 5 1/2 ft

Max. Outlet Pressure 15 psi

Max. Viscosity 50 SUS

Meter Type Not Applicable

Meter Unit Of Measure Not Applicable

Metered No

Min. Fluid Temp. -20 Degrees F

Motor Enclosure Explosion Proof

Motor HP 1/10 hp

Motor RPM 2,100 RPM

Mount Type Bung

Nozzle Fluid Compatibility Diesel

Nozzle Material Aluminum

Nozzle Operation Manual

Nozzle Type Manual

Number of Phases 1

Outlet Size 3/4 in NPT

Overall Height 7 in

Overall Length 9 in

Overall Width 8 in

Package Quantity 1

Power Cord Length 15 ft

Power Source Electric

Pressure Range 15 psi

Pump Connection Type FNPT

Pump Design Gear

Pump Mount Size 2 in

Rated Voltage 12V DC

RPM 2100

Runs Dry No

Seal Material Buna-N

Seal Type Lip

Self-Priming Yes

Spout Material Aluminum

Standards Class I Div 2, cULus Listed, IECEx/ATEX Zone 1

Suction Tube Length 40 in

Suction Tube Material Polypropylene

Suction Tube OD 1 in

Thermal Protection Yes

Transfer Pump Application Stationary Installations

Variable Speed No

Voltage 12V DC

Wetted Materials Not Applicable
