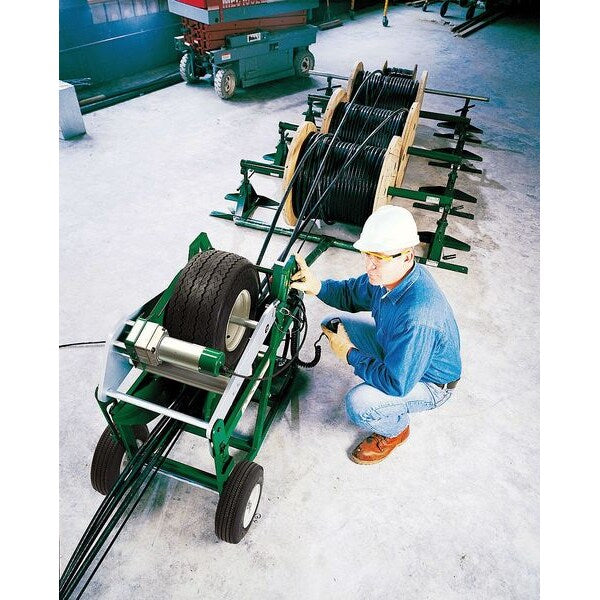

Electrical Cable Feeder, 3.5 In Dia, 115V

SKU
Brand Greenlee
Categories Electric and Cordless Tools
Description Electrical Cable Feeder, Tool Type Cable Feeder, Maximum Momentary Pulling Force Not Applicable, No Load Pulling Speed 36 fpm, Boom Length Not Applicable, Horsepower 1/2 hp, Voltage 115V AC, Mounting Type Not Applicable, Current 15 A, Tool Weight 285 lb, Application Cable Feeding, Cable Capacity 5 x 750 MCM Cable, 6 x 500 MCM Cable, 8 x 250 MCM Cable
graingerSKU: 15X802, mscSKU: , zoro_no: G3499749, mongo_id: 65bbe84c22d7a989a98e9ad9

Web Price

$15,271.24 / each

Qty

Product Details

Application Cable Feeding

Boom Length Not Applicable

Cable Capacity 5 x 750 MCM Cable, 6 x 500 MCM Cable, 8 x 250 MCM Cable

Country of Origin (subject to change) United States

Current 15 A

Features Accommodates Cable Ranging in Size Up to 3 1/2 in Diameter, Dual Motors Drive Each Wheel for Traction on Both Sides of the Cable, Feeds Cable at Variable Speeds to Match the Speed of Cable Pulling Tool, Traction Tires, Can be Operated by 1 Person, Top-Loading and End-Loading Methods

Frequency 60 Hz

Horsepower 1/2 hp

Includes Pendant, Toggle Switch

Maximum Compatible Conduit Size 2 in

Maximum Continuous Pulling Force Not Applicable

Maximum Momentary Pulling Force Not Applicable

Minimum Pulling Speed at Maximum Pulling Force 4 fpm

Motor Low Speed

No Load Pulling Speed 36 fpm

Number of Wheels 2

Overall Height 37.5 in

Overall Length 41 in
