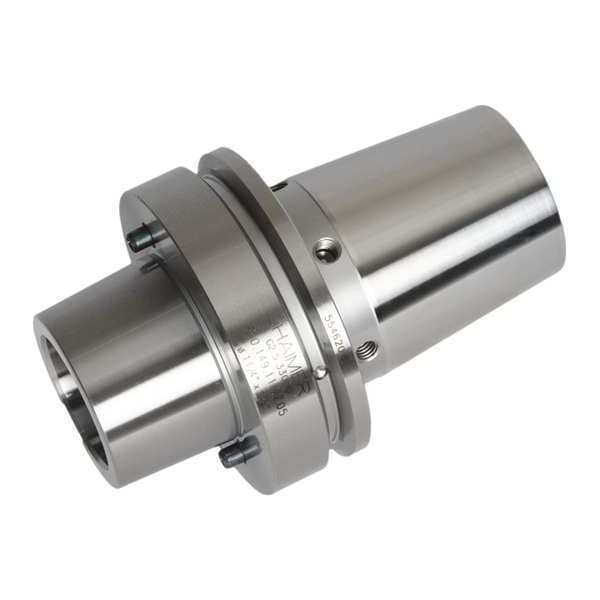

Shrink Fit Holder, 20mm Hole Dia., HSK80F

Home / Shrink Fit Holder, 20mm Hole Dia., HSK80F

Shrink Fit Holder, 20mm Hole Dia., HSK80F

SKU
Brand Haimer
Categories
Description Shrink Fit Tool Holder, Hole Dia. 20.00mm, Taper Size HSK80F, Projection 76.20 mm, Nose Dia. 35.50mm, Coolant Fed Coolant Through, Balanced to RPM 25,000, For Use With Carbide and HSS Tools, Includes Backup Screw
graingerSKU: 46MF57, mscSKU: , zoro_no: G3737977, mongo_id: 65bbee24526e052139af21fd

Web Price

$638.74 / each

Qty

Product Details

Balanced to RPM 25,000

Compatible with Product Type Shrink Fit Units

Coolant Fed Coolant Through

Coolant Through Yes

Country of Origin (subject to change) Germany

Features Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws

For Use With Carbide and HSS Tools

Hole Dia. 20.00mm

Includes Backup Screw

List Number F80M.145

Nose Dia. 35.50mm

Package Quantity 1

Projection 76.20 mm

Projection Gage Line to Nose End 76.20mm

Standards DIN 69893

Taper Size HSK80F

Tool Depth 50.50mm
