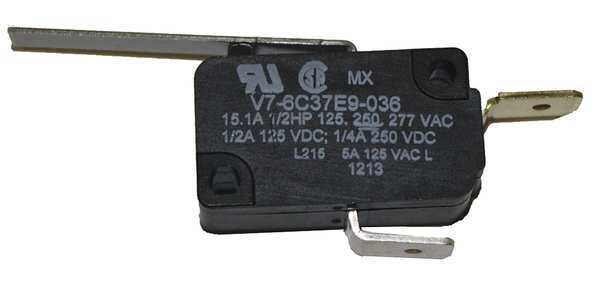

Miniature Snap Action Switch, Lever, Long Actuator, 1NC, 15A @ 240V AC Contact Rating
Miniature Snap Action Switch, Lever, Long Actuator, 1NC, 15A @ 240V AC Contact Rating

Miniature Snap Action Switch, Lever, Long Actuator, 1NC, 15A @ 240V AC Contact Rating

  • Honeywell
  • Miniature Snap Action Switch, Lever, Long, AC Contact Rating - Snap Action Switch 15.1 A 1/2 HP 125 V, 250 V or 277 V, DC Contact Rating - Snap Action Switch 1 /2A 125 V; 1/4 A 250 V, Contact Form- Switches 1NC, Lever Actuator Length - Snap Action Switch 1.75 in, Height - Snap Action Switch 0.63 in, Width - Snap Action Switch 1.14 in, Depth - Snap Action Switch 0.4 in, Electrical Connection - Snap Action Switch 1/4 in Quick Connect, Mounting Dimension - Snap Action Switch 0.87 in Centers

    graingerSKU: , mscSKU: , zoro_no: G4734536, mongo_id: 65bbe9b522d7a989a9971283

Web Price
$5.74 / each
Qty

Product Details

15.1 A 1/2 HP 125 V, 250 V or 277 V
1.75
Lever, Long
Quick Connect Terminal
SPST-NC
1NC
15A 277VAC (VDC Rated)
Mexico
15A
1 /2A 125 V; 1/4 A 250 V
0.4
0.4 in
0.038 in
0.038 in (0.97mm) DT
1/4 in Quick Connect
6 oz (1.67N) OF
Lever
Spring Return, Standard
0.63
0.63 in
PCT Polyester Thermoplastic
1.14
1.75 in
4.37 mm
0.41 x 0.87 Centers
0.87 in Centers
1.67N
-40 Degrees C to 85 Degrees C [-40 Degrees F to 185 Degrees F], options for 175 Degrees C [347 Degrees F]
-40°F (-40°C) to 180°F (82°C)
Straight
2.31 mm
0.091 in (2.31mm) OT
1
SPNC
0.172 in (4.37mm) PT
1 oz
V7
Closeouts
CSA, UL
Quick Connect
Miniature Limit Switch
Long Straight Lever
250VAC
No
1.14 in
