Home / 50A Twist-Lock Receptacle 3P 4W 250VAC BK

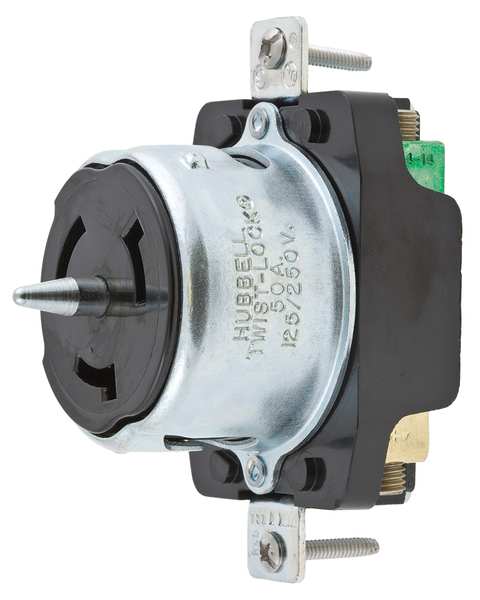

50A Twist-Lock Receptacle 3P 4W 250VAC BK
50A Twist-Lock Receptacle 3P 4W 250VAC BK

50A Twist-Lock Receptacle 3P 4W 250VAC BK

  • Hubbell
  • Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Type Non-Flanged, Housing Color Black, Housing Material Phenolic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass, Cover Type No Cover, Flange Diameter Not Applicable

    graingerSKU: 3D335, mscSKU: 77331171, zoro_no: G2712367, mongo_id: 65bbe81a9a749db8227751e4

Web Price
$161.32 / each
Qty

Product Details

No
50
Black
Straight
Brass
United States
No Cover
50 A
UL 94 V0
Not Applicable
Not Applicable
Non-Flanged
Not Applicable
Dry
Indoor
Industrial
Grounded
Black
Phenolic
IP20
Twist-lock
Industrial
Impact Modified PBT
75 Degrees C
6 AWG
-40 Degrees C
10 AWG
Flush
Flush Mount
Non-NEMA
1
4, 4X, 12
Non-NEMA
1
3
4
Maximum continuous 75A Deg C; minimum –40A Deg C (w/o impact)
1
Three
Yes
Heat Resistant
Yes
Shrouded
With Locking Cover
.100/.040 Brass
CSA Certified C22.2 No. 42, UL 498
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
V-0
250V AC
250V AC
0.75
Screw Terminals
#10 AWG min #6 AWG max
Standard
