Home / Heavy Duty Products, IEC Pin and Sleeve, Receptacle Switched, 100 A 3 Phase 480 VAC

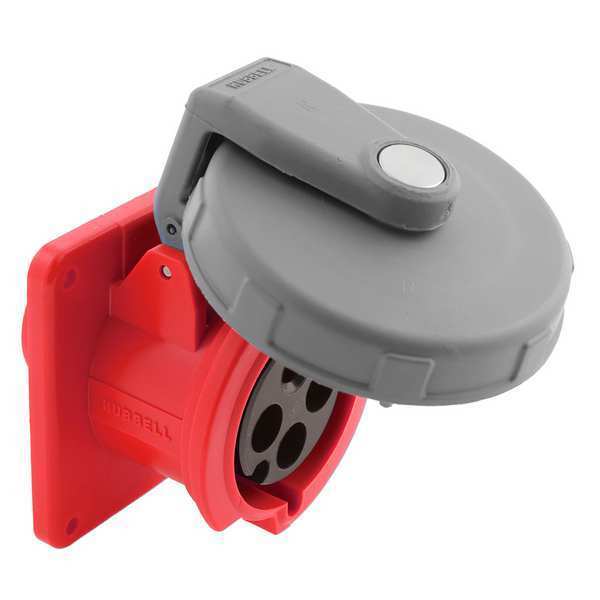

Heavy Duty Products, IEC Pin and Sleeve, Receptacle Switched, 100 A 3 Phase 480 VAC
Heavy Duty Products, IEC Pin and Sleeve, Receptacle Switched, 100 A 3 Phase 480 VAC

Heavy Duty Products, IEC Pin and Sleeve, Receptacle Switched, 100 A 3 Phase 480 VAC

  • Hubbell
  • Raw Materials
  • Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style IEC, IP Rating IP68, IP69K, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 480V AC, Cap Type Spring-Loaded Cap, Connection Orientation Straight, Grounding Grounded, Horsepower Rating 15 hp, Housing Color Blue, Housing Material Composite, Market Commercial, Industrial, Maximum Wire Size 1 AWG, Minimum Wire Size 6 AWG

    graingerSKU: 60HJ59, mscSKU: , zoro_no: G2480008, mongo_id: 65bbe99e22d7a989a996899b

Web Price
$2,460.38 / each
Qty

Product Details

100 A
Industrial/Commercial
PBT
Spring-Loaded Cap
Red
Red
United States
100 A
Withstand 3000V AC
Approved as a Disconnecting Means for Motor Circuits and Branch Circuits, Mates with Existing Installed Base of IEC 60309-2 Pin and Sleeve Devices, Unswitched Ground
Grounded
IEC
15 hp
40 hp
TYPE 3R,3RX,4X AND IP68,IP69K
Insulated Body
IP68, IP69K
Pin and Sleeve Receptacle
Composite
Receptacle Only
Screw Mount
4X
4X
3
4
1
3
Corrosion Resistant, Impact Resistant, Watertight
No
Advantage Switch-Rated
CSA Certified LR280C, File E146033, UL IEC 60309-1 IEC 60309-2, UL Listed
IP69k NEMA 4X
Yes
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact
Receptacle
480V AC
480V AC
Screw Terminals
#6AWG - #1AWG
