Home / Compound Digital Pressure Switch, (2) SPST, -14.5 psi Vac to 145 psi

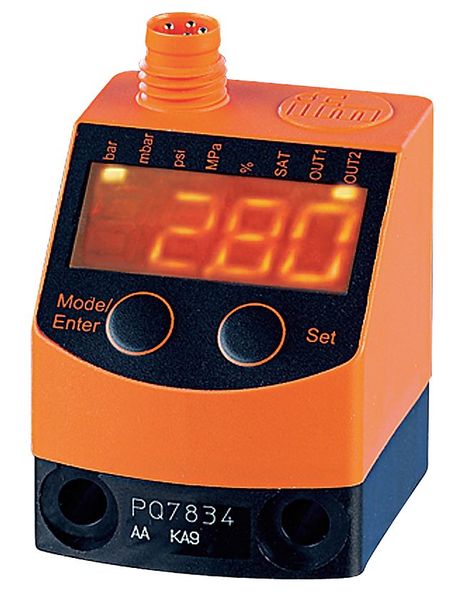

Compound Digital Pressure Switch, (2) SPST, -14.5 psi Vac to 145 psi

Compound Digital Pressure Switch, (2) SPST, -14.5 psi Vac to 145 psi

  • Ifm
  • Compound Digital Pressure Switch, Power Required 18 to 32V DC, Range -14.5 psi Vac to 145 psi, Compatible With Air, Circuit Type PNP, Output Current 100 mA, Contact Form (2) SPST, On Set Point -13 to 145 psi, Off Set Point -14 to 144 psi, Burst Pressure 435 psi, Process Connection G1/8, IP Rating 65, Housing Material PBT (Pocan), Polyester, Wetted Materials Brass, Electrical Connection 4 Pin M8 Connector, Temp. Range 13 Degrees to 176 Degrees F

    graingerSKU: 35T535, mscSKU: , zoro_no: G6951594, mongo_id: 65bbe7033aaddbd5a906aa1e

Web Price
$277.49 / each

Product Details

mounting set for DIN rail: TH 35-7,5 / EN60715, E37340 Thread extension: 1/8, E30075 push-in air fitting for tube: Ø 6 mm, E30076 push-in air fitting for tube: Ø 8 mm, E30077
0...70
for industrial applications
435 psi
<± 0,25 (BFSL) / <± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
PNP
Air
Connector: 1 x M8; coding: A; Contacts: gold-plated
(2) SPST
Romania
< 50
0; 0,002...5
Display unit 4 x LED, green switching status 2 x LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit
bar; kPa; psi; inHg
4 Pin M8 Connector
PNP
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
PBT (Pocan), Polyester
<± 0,25
0.05 bar 1 psi 2 inHg 5 kPa
yes
65
<± 0,05; (per 6 months)
PBT; FKM; polyester
brass; FKM; silicon (coated); PBT
2
-1...10 bar -15...145 psi -30...296 inHg -100...1000 kPa
compressed air
0...60
30 bar 435 psi 886 inHg 3000 kPa
100; (500 V DC)
50 million
455
2
Number of digital outputs: 2
-14 to 144 psi
-13 to 145 psi
18...32 DC; (to SELV/PELV)
100 mA
normally open / normally closed; (parameterisable)
switching signal
yes; (< 40 V)
1
hysteresis / window; normally open / normally closed; diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit
100
18 to 32V DC
0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
20 bar 290 psi 591 inHg 2000 kPa
(2) SPST
-14.5 psi Vac to 145 psi
G1/8
IP 65
III
-14.5 psi Vac to 145 psi
<± 0,1; (with temperature fluctuations < 10 K)
-0.95...9.95 bar -14...144 psi -28...294 inHg -95...995 kPa
< 2.5
yes
-0.9...10 bar -13...145 psi -26...296 inHg -90...1000 kPa
DIN IEC 68-2-27 50 g (11 ms)
yes
Gold-plated contacts
-25...85
<± 0,5
< 200
13 Degrees to 176 Degrees F
0,2; (0...60°C)
0,2; (0...60°C)
2
relative pressure; vacuum
pulsed
-1000
DIN IEC 68-2-6 20 g (10...2000 Hz)
Brass
