Home / Digital Pressure Switch, SPST, 0 to 145 psi

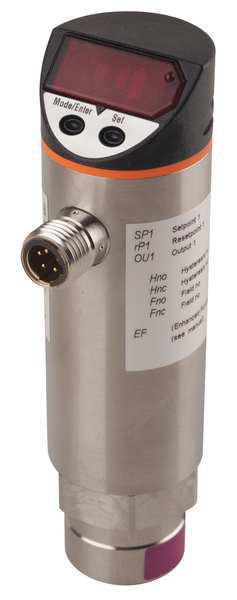

Digital Pressure Switch, SPST, 0 to 145 psi

Digital Pressure Switch, SPST, 0 to 145 psi

  • Ifm
  • Digital Pressure Switch, Power Required 45 to 65 Hz, 90 to 250V AC, Range 0 to 145 psi, Compatible With Air and Liquids, Circuit Type Triac, Output Current 2.5A @ 20 Degrees C, Contact Form SPST, On Set Point 1 to 145 psi, Off Set Point 1 to 144 psi, Burst Pressure 2,175 psi, Process Connection 1/4 in FNPT, IP Rating 65, Housing Material Stainless Steel, Wetted Materials Stainless Steel, Electrical Connection 5 Pin 1/2 in 20UNF Connector, Temp. Range 13 Degrees to 176 Degrees F

    graingerSKU: null, mscSKU: null, zoro_no: G6796325, mongo_id: 65bbe5f33aaddbd5a9ff7f27

Web Price
$746.24 / each

Product Details

programming button
-25...80
for industrial applications
2,175 psi
Triac
Air and Liquids
Connector: 1 x 1/2; coding: C
SPST
Germany
< 10
0...4
0, 0,2,...10, 11,...50
switching status LED, red function display 7-segment LED display measured values 7-segment LED display
5 Pin 1/2 in 20UNF Connector
Triac
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V
Stainless Steel
<± 0,1
0.01 bar 1 psi 1 kPa
yes
65
<± 0,5
<± 0,1; (per year)
stainless steel (1.4301 / 304); PC; PBT; PA; FKM
stainless steel (1.4305 / 303); ceramics; FKM
2
0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa
liquids and gases
-25...80
150 bar 2175 psi 15000 kPa
100; (500 V DC)
100 million
224.58
< 250
1
Number of digital outputs: 1
1 to 144 psi
1 to 145 psi
5...10
85...265 AC
2.5A @ 20 Degrees C
normally open / normally closed; (parameterisable)
switching signal
no
1
hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit
250; ((...70°C) 1000 (...60°C) 1500 (...45°C) 2500 (...20°C))
45 to 65 Hz, 90 to 250V AC
0.2
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
75 bar 1088 psi 7500 kPa
SPST
0 to 145 psi
1/4 in FNPT
IP 65
II
0 to 145 psi
<± 0,1; (with temperature fluctuations < 10 K)
miniature fuse to IEC60127-2 sheet 1; ≤5 A; fast acting
0.05...9.95 bar 1...144 psi 5...994 kPa
no (can be retrofitted)
no
0.1...9.99 bar 1...145 psi 10...999 kPa
DIN IEC 68-2-27 50 g (11 ms)
no
-40...100
<± 1,0
< 160
13 Degrees to 176 Degrees F
<± 0,3; (-25...80°C)
<± 0,2; (-25...80°C)
1
relative pressure
DIN IEC 68-2-6 20 g (10...2000 Hz)
Stainless Steel
