Home / Air Compressor Pump, 5 hp, 2 Stage, 28 oz Oil Capacity, 2 Cylinder

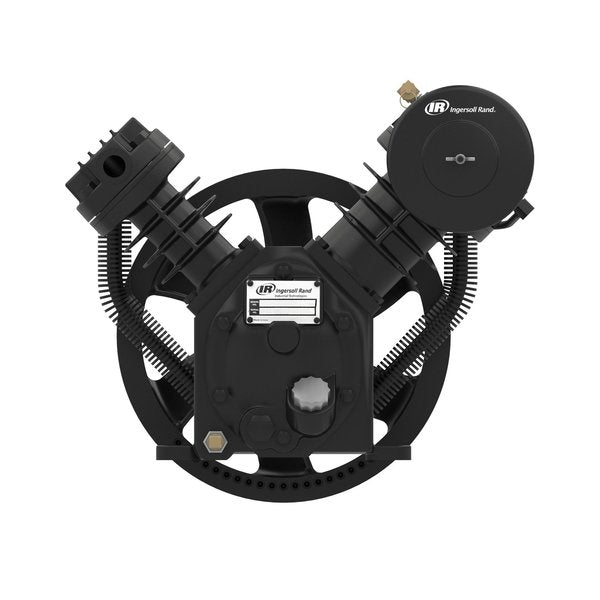

Air Compressor Pump, 5 hp, 2 Stage, 28 oz Oil Capacity, 2 Cylinder

Air Compressor Pump, 5 hp, 2 Stage, 28 oz Oil Capacity, 2 Cylinder

  • Ingersoll-Rand
  • Pumps
  • Air Compressor Pump, Lubrication Type Splash Lubricated, Number of Stages 2, Maximum Output Power 5 hp, Free Air Flow Rate @ Maximum Pressure 14.0 cfm @ 175 psi, Number of Cylinders 2, Maximum Operating Pressure 175 psi, Flywheel Diameter 13 1/2 in, Flywheel Included Yes, Pump Speed 1,575 RPM, Duty Cycle Continuous, Construction Cast Iron, Groove Section A, Number of Grooves 1, Valve Type Finger, Rotation CCW, Stroke Length 2 3/4 in

    graingerSKU: 4KR37, mscSKU: , zoro_no: G8531546, mongo_id: 65bbe7fe22d7a989a98ce92b

Web Price
$1,916.24 / each
Qty

Product Details

1 3/4 in, 3 in
1.75 in, 3 in
Cast iron
United States
Continuous
13 1/2 in
13 1/2 in
Yes
14.0
14.0 cfm @ 175 psi
1
A
5 hp
Yes
Splash Lubricated
175 psi
175 psi
5 hp
1/2 in
2
1
2
28 oz
NPT
0.5 in
19 1/2 in
16 in
18 3/16 in
1
1,575
1,575 RPM
CCW
6 17/64 in
2 3/4 in
Splash Lubricated, Type 30 Air Compressor
Finger
150 lb
