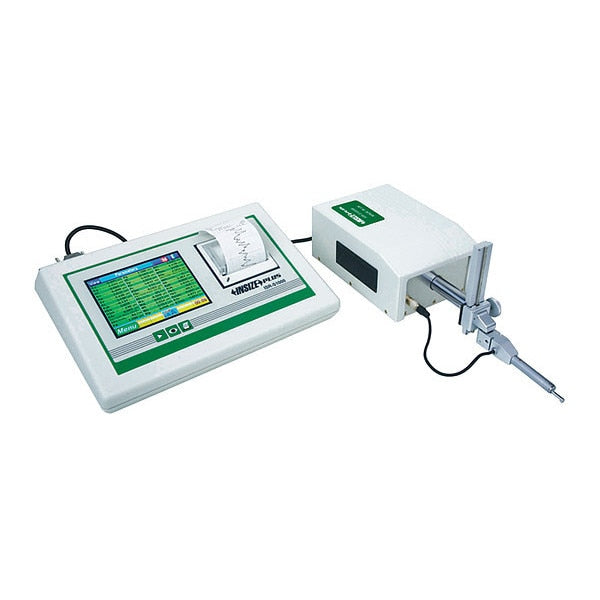

Surface Roughness Tester, Analysis Graph

SKU
Brand Insize
Categories
Description Portable Surface Roughness Tester with Onboard Printer, Features 48 Roughness Parameters, Measuring Range 39370 micron in, Profile Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, Roc, RPc, Pa, Pq, Pp, Pc, Psm, PPc, Wa, Wq, Wt, Wp, Wz, Wv, Wz, Wsm, W¿c, WPc, Rk, Rpk, Mr1, Mr2, Rmax, R3z, R3zm, R, Ar, Rx, Aw, Rke, Rpke, Mr1e, Mr2e, Analysis Graph Total Profile Graph, W Graph, R Graph, Rmr, Pmr, Wmr Analysis, Rel. Rmr, Rel. Pmr, Rel. Wmr Analysis, P Graph
graingerSKU: 463L24, mscSKU: , zoro_no: G0135403, mongo_id: 65bbe8c922d7a989a99177cc

Web Price

$25,601.24 / each

Qty

Product Details

Analysis Graph Total Profile Graph, W Graph, R Graph, Rmr, Pmr, Wmr Analysis, Rel. Rmr, Rel. Pmr, Rel. Wmr Analysis, P Graph

Arbitrary Length (In.) 12.600

Compatible Memory Card None

Country of Origin (subject to change) Italy

Cut Off Length (In.) 0.003 in, 0.01 in, 0.03 in, 0.1 in, 0.3 in

Data Output Connection Type USB, Software

Data Output Type Cable

Detector 0.003ozf

Detector Measuring Force 0.83 mN

Dimensions (In.) 12.60 x 8.27 x 3.15

Dimensions - Display Unit 3.15 in x 8.27 in x 12.60 in

Display Functions Touch Screen

Display Screen Size 5.9 in

Drive Unit Skidded

Drive Unit Principle Skid

Features 48 Roughness Parameters

Includes AC/DC Adapter, Probe Driver, Standard Probe

Includes Battery Yes

Includes Case No

Includes Printer Yes

IP Rating Not Rated

Maximum Operating Temperature - C 40 Degrees C

Maximum Operating Temperature - F 104 Degrees F

Measuring Condition Standards ISO-4287, JISB0601, ISO-12085, JIS-B0631

Measuring Range 39370 micron in

Measuring Range (In.) 39370 micron in

Measuring Range (mm) 1 mm

Measuring Range Ra 0.005 micronm to 250 micronm

Measuring Range Rz 0.05 micronm to 1000 micronm

Memory Storage Capacity 1000

Minimum Operating Temperature - C -20 Degrees C

Minimum Operating Temperature - F -4 Degrees F

Number of Parameters Measured 48

Number of Sampling Spans 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19

Operating Position Horizontal

Operating Temperature Range -4 Degrees F to 104 Degrees F / -20 Degrees C to 40 Degrees C

Output USB Cable, Software Optional

Package Quantity 1

Paper Type Thermal

Paper Width (In.) 2.203 in

Parameters Measured Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, R6c RPc, Pa, Pq, Pt, Pp, Pv, Pc, Psm, P6c, PPc, Wa Wq, Wt, Wz, Wp, Wv, Wc, Wsm, W6c, WPc, Rk Rpk, Rvk, Mn1, Mr2, Rmax, R3z, R3zm, R, AR Rx, Aw, Rke, Rpke, Rvke, Mr1e, Mr2e

Power Supply 9V Battery

Printer Paper Type Thermal

Probe Positions 180 degrees

Probe Sensor Type Inductive

Probe Tip Radius 5 um

Profile Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, Roc, RPc, Pa, Pq, Pp, Pc, Psm, PPc, Wa, Wq, Wt, Wp, Wz, Wv, Wz, Wsm, WÃÂ¿c, WPc, Rk, Rpk, Mr1, Mr2, Rmax, R3z, R3zm, R, Ar, Rx, Aw, Rke, Rpke, Mr1e, Mr2e

Profile Resolution 0.01micron in

Sampling Length 1.97 in

Sampling Length (In.) 1.97 in

Sampling Range Arbitrary Length 12.6 mm

SPC Output Yes

Tester Series SR400

Transverse Cutoff Length 0.003 in; 0.01 in; 0.03 in; 0.1 in; 0.3 in
