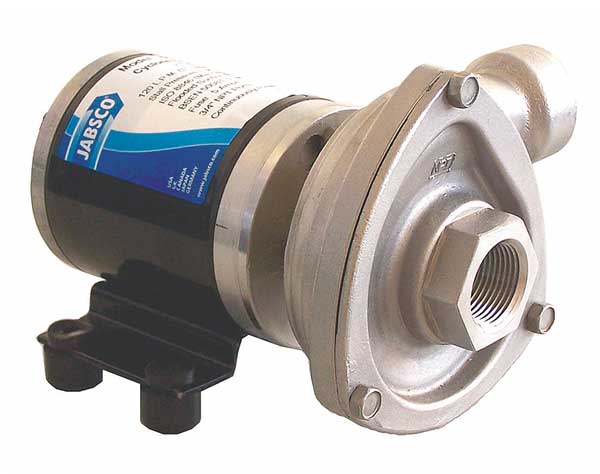

Stainless Steel 5/32 HP Centrifugal Pump 12V

Home / Stainless Steel 5/32 HP Centrifugal Pump 12V

Stainless Steel 5/32 HP Centrifugal Pump 12V

SKU
Brand Jabsco
Categories Pumps
Description Marine Centrifugal Pump, Phase -, Pump Housing Material Stainless Steel, Horsepower 5/32 hp, Nameplate Voltage 12V DC, Maximum Feet of Head 8 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Fan Cooled, Maximum Flow Rate 29 gpm, Flow Rate @ 5 ft of Head (Maximum) 14 gpm, Suction Lift (Maximum) 6.5 ft, Seal Material Carbon, Best Efficiency Head 10 ft

Web Price

$561.24 / each

Qty

Product Details

Agency Compliance ISO 8846 Marine & USCG Regs.

Amps 9

Best Efficiency Flow 12.5 gpm

Best Efficiency GPM @ Head 12.5 gpm @ 10 ft

Best Efficiency Head 10 ft

Compatible Discharge Pipe Size 3/4 in

Compatible Intake Pipe Size 3/4 in

Connection Style FNPT

Country of Origin (subject to change) Mexico

Discharge Type NPT

Duty Continuous

Duty Cycle Continuous

Features Silent Suction Lift, Various Discharge Port Configurations Available, Vibration Free Running

Flow Rate @ 1 ft of Head (Maximum) Not Applicable

Flow Rate @ 10 ft of Head (Maximum) Not Applicable

Flow Rate @ 100 ft of Head (Maximum) Not Applicable

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) Not Applicable

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) Not Applicable

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) Not Applicable

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) Not Applicable

Flow Rate @ 5 ft of Head (Maximum) 14 gpm

Flow Rate @ 50 ft of Head (Maximum) Not Applicable

Flow Rate @ 60 ft of Head (Maximum) Not Applicable

Flow Rate @ 70 ft of Head (Maximum) Not Applicable

Flow Rate @ 80 ft of Head (Maximum) Not Applicable

Flow Rate @ 90 ft of Head (Maximum) Not Applicable

For Use With Potable Systems No

GPH of Water @ 5 Ft. of Head 14

Height 5 in

Horsepower 5/32 hp

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

HP - Pumps 5/32 hp

HP_ 5/32

Impeller Design Anti-Clog

Impeller Material Stainless Steel

Impeller Type Anti Clog

Inlet 3/4 FNPT

Inlet Size - Pumps 3/4 in NPT

Inlet/Outlet Size 3/4

Intake and Discharge Size 3/4 in , 3/4 in

Intake Type NPT

Item - Straight Centrifugal Pumps Straight Centrifugal High Flow Pump

Length 6 in

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Max. GPM @ Head 25 @ 1.5 ft

Max. Head 8 ft

Max. Liquid Temp. 210 Degrees F

Max. Pressure 7.3 psi

Max. Pressure - Pumps 7 psi

Maximum Feet of Head 8 ft

Maximum Flow Rate 29 gpm

Maximum RPM 3,500 RPM

Min. GPM @ Head 5 @ 7.3 ft

Minimum Media Temperature 39 Degrees F

Motor Ambient Temperature (Maximum) 203 Degrees F

Motor Ambient Temperature (Minimum) 39 Degrees F

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure - Pumps Totally Enclosed Fan-Cooled

Motor Type Brushed

Nameplate Voltage 12V DC

Outlet 3/4 FNPT

Outlet Size - Pumps 3/4 in NPT

Overall Height 4.4 in

Overall Length 6.3 in

Overall Width 4 in

Package Quantity 1

Pump Housing Material Stainless Steel

Pump Type Low Pressure Centrifugal Pump

Seal Material Carbon

Seal Type Mechanical

Series 50840

Shaft Material Stainless Steel

Shut Off Pressure (Maximum) 7 psi

Standards CE Certified, ISO 8846

Suction Lift (Maximum) 6.5 ft

Voltage 12V

Voltage - Pumps 12V DC

Width 6 1/2 in
