Home / Leveling Set, Low Version, D=26 Carbon Steel, D2= 70
Leveling Set, Low Version, D=26 Carbon Steel, D2= 70
Leveling Set, Low Version, D=26 Carbon Steel, D2= 70

Leveling Set, Low Version, D=26 Carbon Steel, D2= 70

  • Kipp
  • Raw Materials

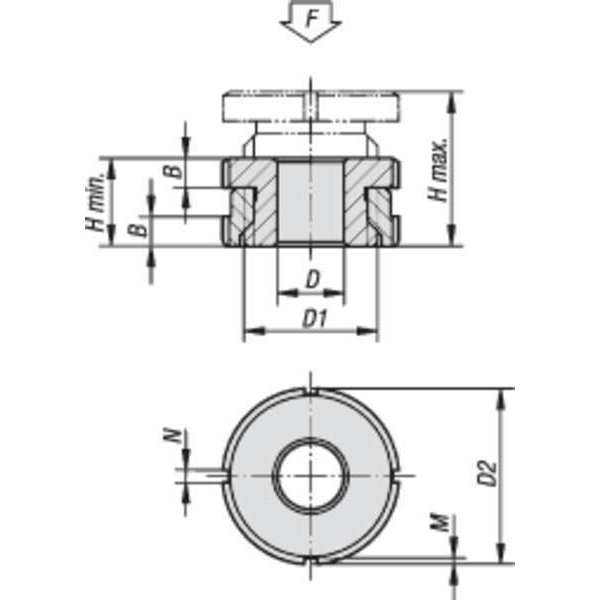

  • Adjustment Bolt, Bolt Material Steel, Bolt Finish Zinc Plated, Center Hole Dia. 26.00mm, Use with Screw Size M24, Bolt Thread Size M50x1.5, Bolt Outside Dia. 70.00mm, Min. Bolt Height 33.00mm, Max. Bolt Height 43.00mm, Shoulder Height 11.00mm, Spanner Notch Width 11.00mm, Spanner Notch Depth 2.50mm, Max. Down Force 330 kN
Web Price
$116.99 / each
Qty

Product Details

Zinc Plated
Steel
70.00mm
M50x1.5
26.00mm
Germany
43.00mm
330 kN
33.00mm
1
11.00mm
2.50mm
11.00mm
M24
