Home / Leveling Set With Locknut, Standard, D=17, 5 Carbon Steel, D2= 58
Leveling Set With Locknut, Standard, D=17, 5 Carbon Steel, D2= 58
Leveling Set With Locknut, Standard, D=17, 5 Carbon Steel, D2= 58

Leveling Set With Locknut, Standard, D=17, 5 Carbon Steel, D2= 58

  • Kipp
  • Raw Materials

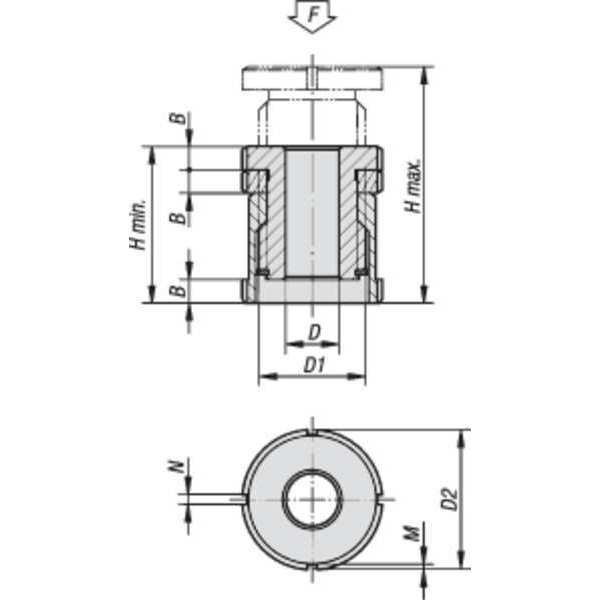

  • Adjustment Bolt, Bolt Material Steel, Bolt Finish Zinc Plated, Center Hole Dia. 17.50mm, Use with Screw Size M16, Bolt Thread Size M40x1.5, Bolt Outside Dia. 58.00mm, Min. Bolt Height 63.00mm, Max. Bolt Height 86.00mm, Shoulder Height 9.00mm, Spanner Notch Width 6.00mm, Spanner Notch Depth 2.50mm, Max. Down Force 210 kN
Web Price
$102.36 / each
Qty

Product Details

Zinc Plated
Steel
58.00mm
M40x1.5
17.50mm
Germany
86.00mm
210 kN
63.00mm
1
9.00mm
2.50mm
6.00mm
M16
