Home / Washdown Pump Motors, 7-1/2 HP, 60 Hz
Washdown Pump Motors, 7-1/2 HP, 60 Hz

Washdown Pump Motors, 7-1/2 HP, 60 Hz

  • Leeson
  • Pumps

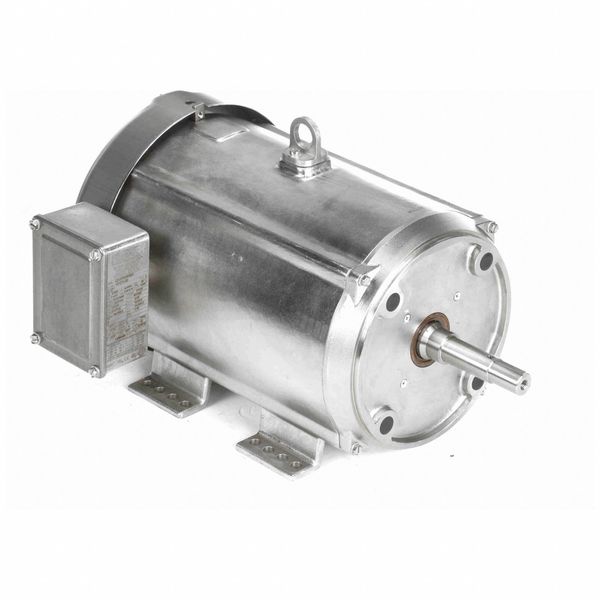

  • Washdown Pump Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 19.6/9.8 A, 215JM Frame, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rating 3:1
Web Price
$4,013.74 / each
Qty

Product Details

8.5 in
Mexico
Continuous
Unfinished
215JM
19.6/9.8 A
7 1/2
60
3:1
40 Degrees C
Washdown
Ball
3-Phase
Totally Enclosed Fan Cooled
Stainless Steel
Horizontal
Rigid Base
1.15
JM
CW/CCW
None
1,765
B
1
91.7 %
19 13/16 in
1
Three
1,701-1,800
1 1/4 in
CE Certified, CSA Certified, UL Listed
230/460V AC
190/380, 230/460
82 lb
